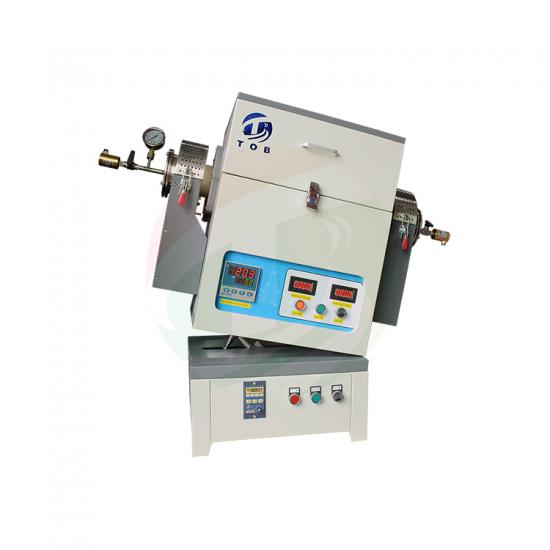

Dimensions: 1200mm*500mm*800mm(L*W*H)
Heating power: 3KW
Furnace tilt: 45°
Heating element: High-quality alloy resistance wire
Heating tube material: 1400 # High purity corundum tube
Tube purity: 95%
Heating tube total length: 800mm
Furnace tube diameter: OD100mm,ID about 90mm
Length of heating zone: 300mm
Length of constant temperature zone: 150mm
Maximum temperature: 1200℃
Working temperature: ＜1100℃
Temperature control mode: It adopts a full-automatic control system
Constant temperature accuracy: ±1℃
Heating rate: ≤15℃
Recommended heating rate: ≤3-5℃
Main drive power： 120W
Power supply： AC220V /50HZ/60HZ
Furnace tube speed: 0～30r/min（adjustable）
Vacuum degree: 200pa-2000pa
Input gas: Various protective gases such as nitrogen and argon
Flow control: Float meter （Optional）
Digital display: Measure temperature, set temperature, dual display
Control features: The modular structure of the control system
Air cooling system: The Fuji fan impeller is installed directly at the bottom of the double-layer furnace shell and is assembled with the control system.
Heating element: Using high-quality alloy resistance wire
Heating element installation position and method: Installed in the lower and upper part of the furnace
Refractory: ceramic fiber board, and the insulation material is made of vacuum formed fiber poly light board material.
Insulation Materials: High-quality alumina multi-fiber insulation material, the insulation layer is 90mm. (Model: LY1400)
Shell: Welded by steel plates and profiles
Structural features: The furnace body heats up and down, heating elements, thermocouples, and controllers
Energy saving performance: Light weight, fast heating, energy saving over 50%, saving time and effort.
Spare parts: A stove hook, a pair of high temperature gloves
