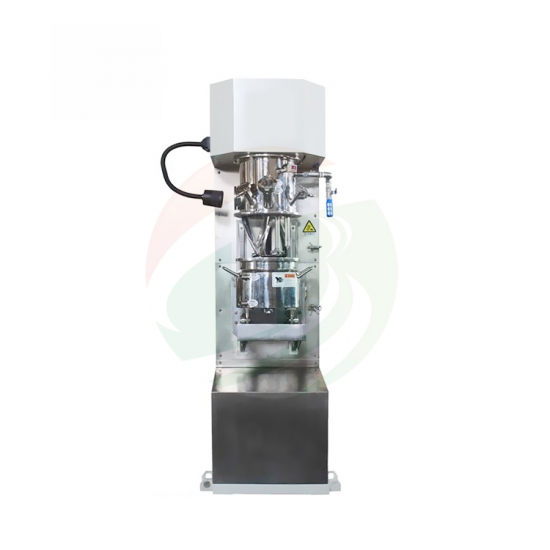

Lower Barrel Parts
Design total volume: 8L
Elective volume: 2.7-5L
Container inner diameter: 240mm
Container inside depth: 180mm
Container material: The parts in connect with materials is 304 stainless steel
Tempering jacket form: The bottom and the barrel jacket can input water for cooling, heat preservation and heating
Tempering jacket port
G3/4"，with quick opening movable joint
jacket withstand pressure≤0.4MPa
Tempering jacket circulation system
prepared by customer，
jacket water inlet temperature≤8℃，
cooling water flow＞3.5L/min
Discharge materials form: bottom of a G1-1/2" three-piece discharge ball valve, equipped with 2 "standard ISO quick connect clamp connector
Design environment temperature:-10～+120°C
Move mode: Casters move
Mixing Parts
Working frequency: 5-50hz
Mixing power: 1.5kw
Mixing blade speed: 10-98rpm
Planetary box rotate speed: 5-50rpm
Mixing blade diameter: 124mm
Mixing blade model: Variable cross-section spiral twist type, 90 ° helix
Mixing blade material: 304 stainless steel
Mixing blade line speed: 0.06-0.6m/s
Mixing blade number:2pcs
Dispersing Parts
Working frequency: 5-50hz
Dispersing power: 2.2kw
Dispersing rotate speed: 610-6100rpm
Dispersing plate diameter: 70mm
Dispersing model: Serrated
Dispersing plate material: 304 stainless steel
Dispersing line speed: 2.2-22m/s
Dispersing number: 1pcs
Dispersing shaft number: 1pcs
Scratch the Wall Parts
Scratch wall bracket material： 304 stainless steel
Scratch wall material： Teflon
Scratch wall rotate speed： Consistent with planetary box rotate speed
Removable or not： Removable design (Need to remove when scraping the wall on high viscosity process)
Base and Lifting Parts
Parts materials： High rigidity structural carbon steel
Lifting way： electric
Lifting guide： High-precision linear guide
Lifting itinerary： ≤290mm
Upper Barrel Parts
Upper barrel material： 304 stainless steel
Power feed port： quick opening interface DN40 1pcs
Liquid feed port： ISO standard 1/2" quick interface 1pcs
Mirror port： DN50 tempered glass sight glass 1pcs
Vacuumize port： G1/2 " 1pcs
Exhaust port： together with vacuumize port
Digital vacuum gauge port： M14×1.5 Internal thread metric tooth interface 1pcs
Control System
Electrical cabinet： Used to install low-voltage electrical components such as inverter
Manual operation panel： For placement buttons, knobs, gauges etc
Power supply： AC 3×380V±5﹪，50Hz
Control mode： electronic control
Power control and speed adjustment mode: Inverter start and control
Cooling mode： Air-cooled (wind cooling)
Operation mode： Touch screen
Digital temperature display gauge： material temperature
Emergency stop button： 1pcs
Alarm system： Over-temperature alarm, over-temperature alarm shutdown, alarm shutdown
Speed display: Touch screen shows the speed
Power instructions: 1pcs
Safety Chain System
Emergency stop: press the emergency stop switch, the device immediately stop, and can not do anything
Start low-speed mixing: can lift the barrel and turning at the same time
High-speed dispersion: barrel up in place before turning
Safe lock in operation: When the machine is running, the mixing barrel can not be lowered, can not open the mixing barrel.
Prevent vacuum tube backflow: special vacuum buffer tank design, can effectively prevent the vacuum pump oil back to the mixing drum phenomenon
Stop running fault: Inverter comes with overload, overcurrent, overvoltage, leakage, lack of equal protection
Mixing barrel lift: stirring barrel in place to rise
Mixing barrel did not return to normal pressure can not be dropped.
After mixing barrel rises in place and high-speed dispersion, then can be started.
After mixing barrel rises in place, with locking protection system, to prevent while the mixing barrel rises to high place abnormal fall.
Dry mixing stage, while the barrel rising, the stirring paddle need to rotate at the same time.
Other description
Temperature probe： Pt100
Temperature measurement: Located of the barrel wall to detection of internal material temperature
Transmission parts bearings： High-speed components for imported bearings, low-speed components for domestic bearings
Oil seal： Domestic brands，O-ring for Static seal，dynamic seal using mechanical seals or skeleton oil seal
Grease： Domestic brands
Mechanical seal lubricants： Imported brand
Petrol cylinder： Domestic brands
Petrol station： Domestic brands
Valve： Domestic brands
acuum design quantity demand： vacuum system prepared by customer own, air exhaust volume 2L/S（2X-2）
Vacuum hold： -0.098Mpa，holding pressure for 24 hours＞-0.085Mpa，do not leak to the barrel
Total host power： ＞4kw
Total weight: about 700kg
Dimensions： L1463mm × W610mm × H1770mm
Appearance color： off-white
Ground bearing： 900kg/㎡
