Display: 24-bit, 480 X 272 and touch TFT LCD screen
Reading digits: 4 ½ digits

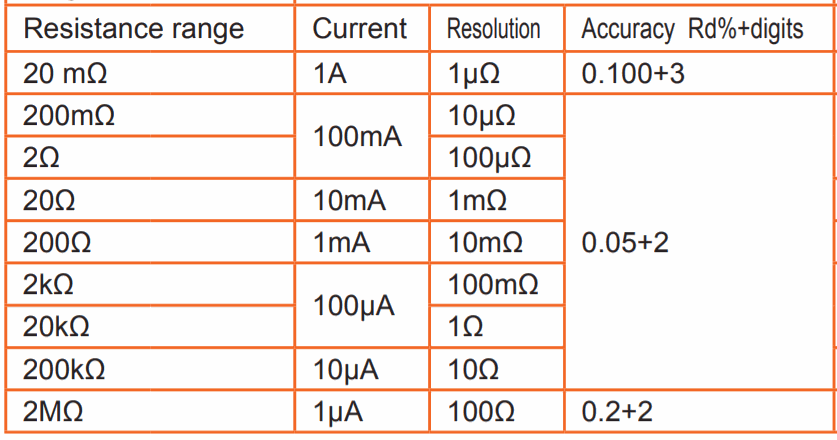

Resistance measurement:
Measurement range: 1μΩ~2MΩ
Measurement function
Resistance measurement time: FAST:10ms; MED:25ms; SLOW1:115ms; SLOW2:455ms (Above data is correct when DISPLAY is OFF; When DISPLY is ON, 20ms should be added.)
Temperature measurement time: 100 ± 10ms
Test terminal: 4-terminal
Range switch: AUTO and Manual
Trigger mode: Internal, Manual, External, BUS
Temperature measurement 1: -10.0℃--99.9℃ Sensor：PT500
Temperature measurement2: Analog input：0V--2V Display：-99.9℃ -- 999.9℃
General specification
Working condition: Temperature:0℃ - 40℃，Humidity:≤ 80%RH
Storage condition: Temperature:-10℃-50℃,Humidity: ≤90%RH
Accuracy guarantee condition: Temperature:18℃ - 28℃，Humidity:≤ 80%RH
Power
- Voltage: 99V—121V,198V—242V
- Frequency: 47.5Hz—63Hz
Consumption: 30 VA
Dimension: 215mm×89mm×360mm（net size） 235mm×104mm×360mm（with foam sheath）
Weight: Approx. 3.6kg
