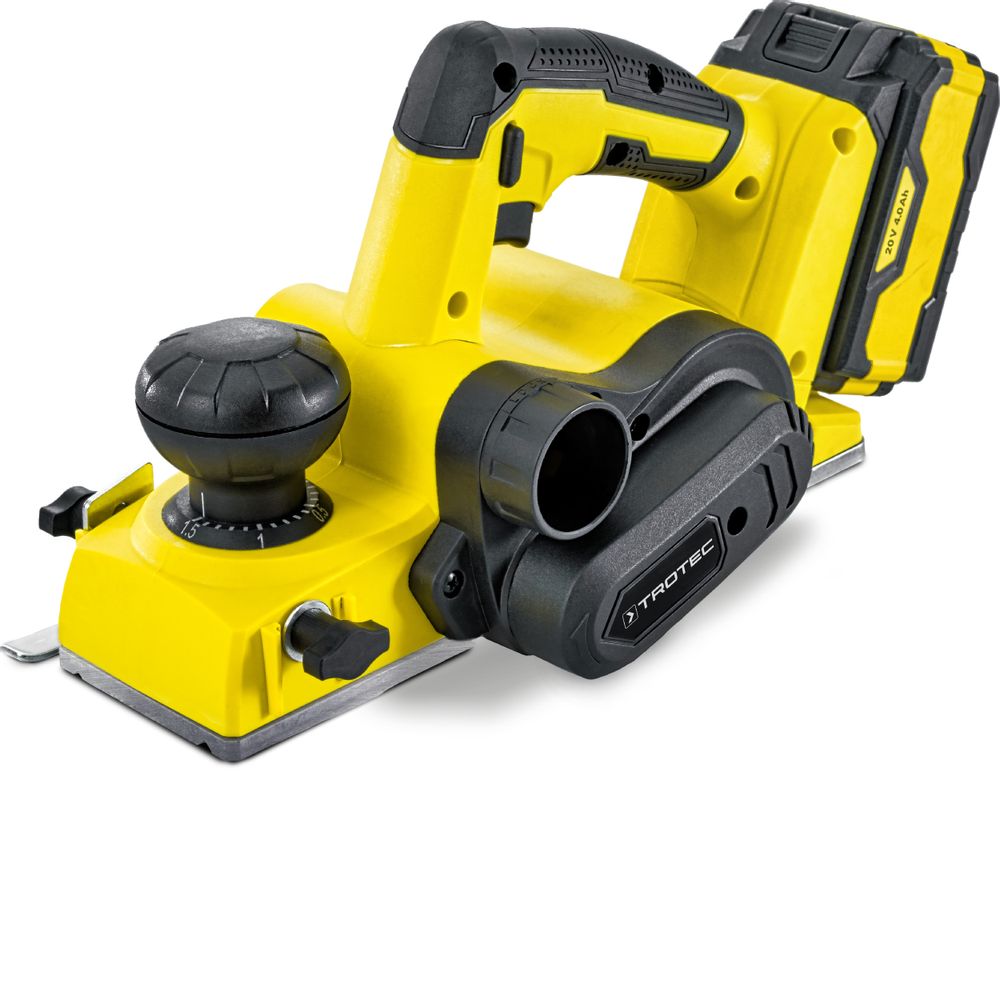

Trotec PPLS 10-20V Electric planer (0 - 12000 min-1; 0 – 1.5 mm)

Technical data:

Idle speed: 0 - 12.000 min-1

Planing width [mm]: 82

Cutting depth: 0 – 1.5 mm

Rebating depth: max. 10 mm

Sound values according to EN 62841:

Sound pressure level [dB(A)]: 96

Sound power level [dB(A)]: 85

Uncertainty (K) [dB]: 3

Weighted acceleration, typically:

Hand-arm-vibration ah [m/s²]: 1.2

Uncertainty (K) [m/s²]: 1.5

Electrical values battery:

Battery nominal voltage [V]: 20

Battery capacity [Ah]: 4

Capacity indication: 3-stage

Battery type: Li-ion

Battery charging time [h]: 1.5

Charger:

Mains connection: 230 - 240 V, 50 Hz

Output voltage [V]: 21.5

Power input [W]: 94

Nominal current consumption [mA]: 3500

Connection plug: CEE 7/16

Cable length [m]: 1.5

Protection class: II

Dimensions:

Length (packaging excluded) [mm]: 321

Width (packaging excluded) [mm]: 168

Height (packaging excluded) [mm]: 175

Weight:

(packaging excluded) [kg]: 2

Manual
