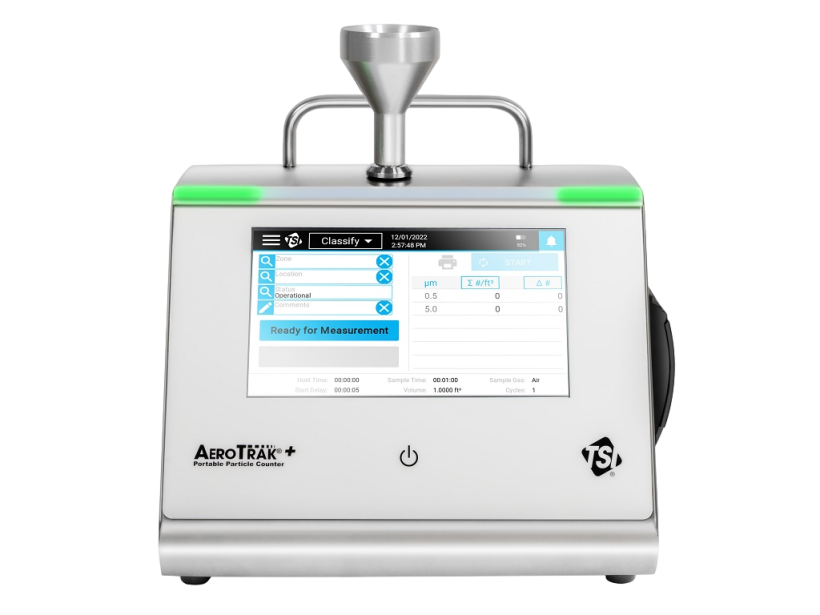

A100-50
Size Range: 0.5 µm to 10 µm
Flow Rate: 3.53 CFM (100 LPM) with ±5% accuracy
Particle Size Channels: 0.5 µm to 10.0 µm, (6) user selectable channels
Size Resolution: <15% @ 0.5 µm (per ISO 21501-4)
Counting Efficiency: 50% at 0.5 µm; 100% for particles >0.75 µm
Light Source: Laser Diode
Vacuum Source: Internal pump with patented flow control technology and automatic flow fault detection
Communication: Ethernet (TCP/IP), USB
Near Field Communication: Operator and location
Wireless Option: RTU Wireless supported
External Surface: Stainless steel
Analog Output: 3 channels 4–20 mA output; 2 user selectable particle sizes (linear or log); 1 status channel
Operating Conditions: 34° to 95°F (1° to 35°C); 5% to 95% RH, non-condensing
Zero Count: <1 particle / 5 minutes
Sampling Time: 1 second to 24 hours, continuous
Status Indicator (LED): Sampling, Alert, Sampling Complete
Alarm Output: Normally open dry contact rated to 60 V AC/DC; 1.5 A peak, 0.5 A continuous
