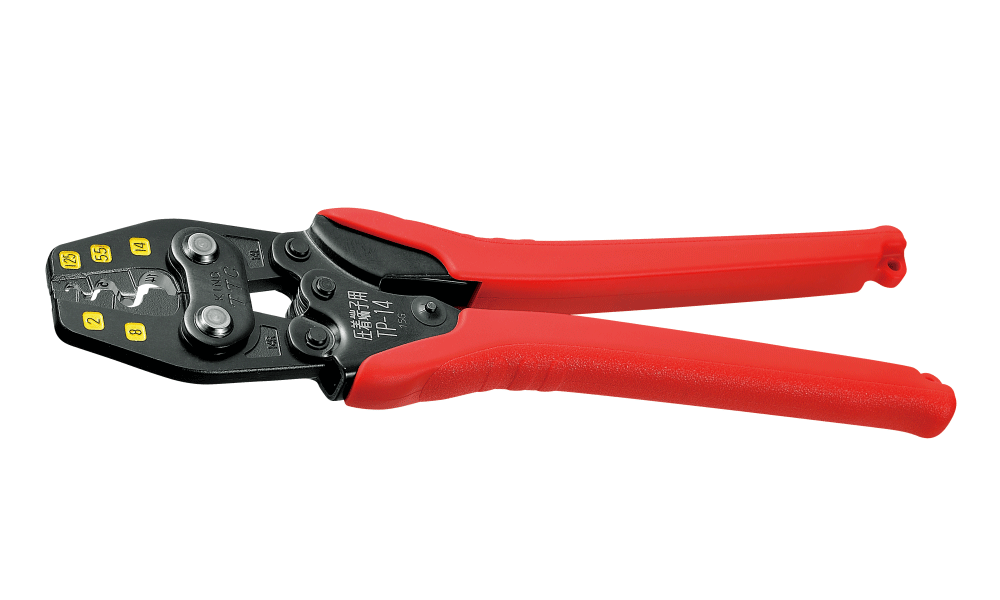

Tsunoda TP-14 Crimping Tool For Non-Insulated Terminals (1.25~14㎟)

Overall length: 257mm

Head width: 52mm

Head thickness: 6mm

Handle width: 74mm

Weight: 435g

EAN-code (4952269): 113365

Terminal size:

JIS: 1.25/2/5.5/8/14㎟

IEC/DIN: 1.5/2.5/6/10/16㎟

AWG: 16/14/10/8/6

Crimped Mark: 1/2/5/8/14

Material: Alloy steel

Head hardness [HRC]: 42~48

Handle part hardness [HRC]: 43~47

Handle cover: Elastomeric molded resin grips
