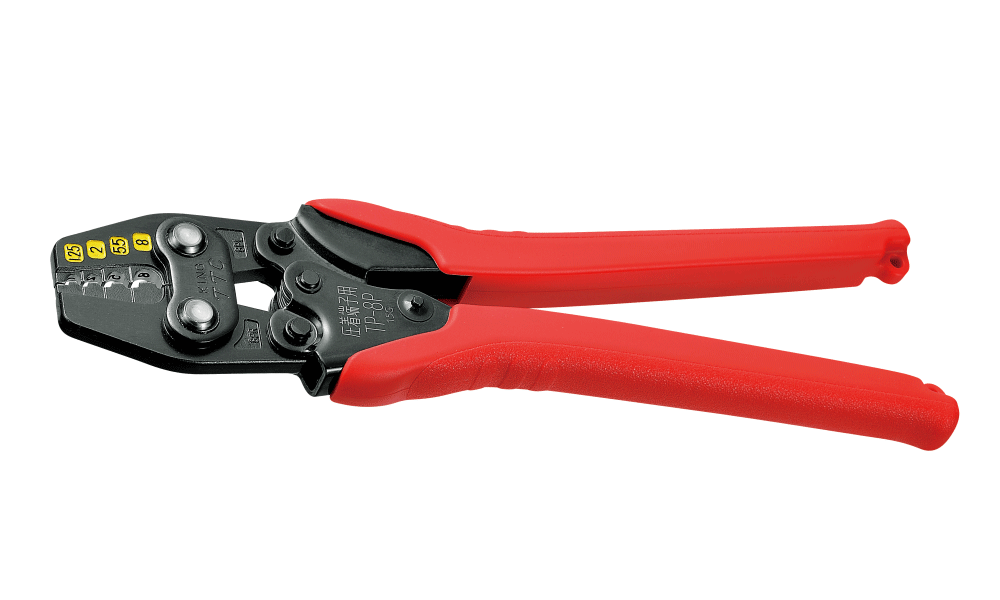

Tsunoda TP-8P Crimping Tool For Non-Insulated Terminals (1.25~8㎟, Parallel type)
Manufacturer: Tsunoda Model: TP-8P Origin: Japan Guarantee: 12 Month - Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Overall length: 251mm
Head width: 48mm
Head thickness: 6mm
Handle width: 74mm
Weight: 420g
EAN-code (4952269): 113358
Terminal size:
JIS: 1.25/2/5.5/8㎟
IEC/DIN: 1.5/2.5/6/10㎟
AWG: 16/14/10/8
Crimped Mark: 1/2/5/8
Material: Alloy steel
Head hardness [HRC]: 42~48
Handle part hardness [HRC]: 43~47
Handle cover: Elastomeric molded resin grips
