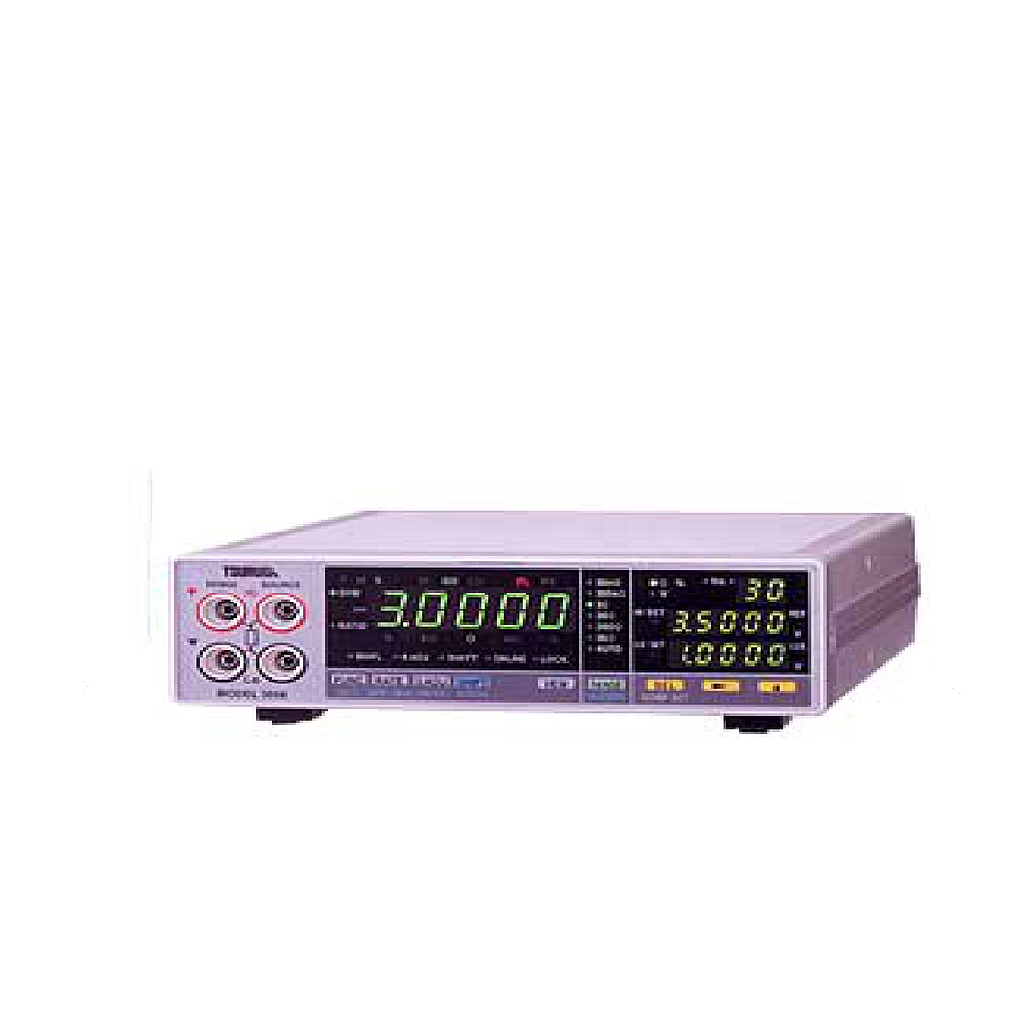

Model & Output 3566 -O: No data output
3566-03-O: BCD output, TTL level
3566-04-O: BCD output, Open collector
3566-05-O: RS-232C
3566-06-O: RS-485
※） -O: Judgement output
Nil: Open collector NPN
RY: Relay output
Measurement ranges 30 m-ohm, 300m-ohm, 3, 30, 300, and 3K-ohm, 6 ranges
Accuracy ±0.5 % of rdg. +8 digit at SLOW sampling mode
±0.5 % of rdg. +11 digit at MEDIUM sampling mode
±0.5 % of rdg. +6 digit at FAST sampling mode
Measuring frequency AC1kHz±0.2Hz
Measurement current From 7.4 mA to 1.5 µA
Max. Applied voltage 60V DC for all ranges
Sampling time 50/sec at 50HZ, 60/sec. at 60HZ (FAST mode)
6.25/sec at 50HZ, 7.52/sec. at 60HZ (MEDIUM mode)
1.56/sec. at 50HZ, 1.88/sec. at 60HZ (SLOW mode)
Response speed 100ms at 50HZ, 84ms at 60HZ (FAST mode)
800ms at 50HZ, 667ms at 60HZ (MEDIUM mode)
1.92s at 50HZ, 1.60ms at 60HZ (SLOW mode)
Measurement method Four-terminal measurement
Power supply 100 to 240V AC, 50/60HZ
Weight Approx. 1 kg
Dimensions 206 (W) x 65 (H) x 200 (D) mm
Accessories Power fuse(1), Power cord(1), Input connector (1)
