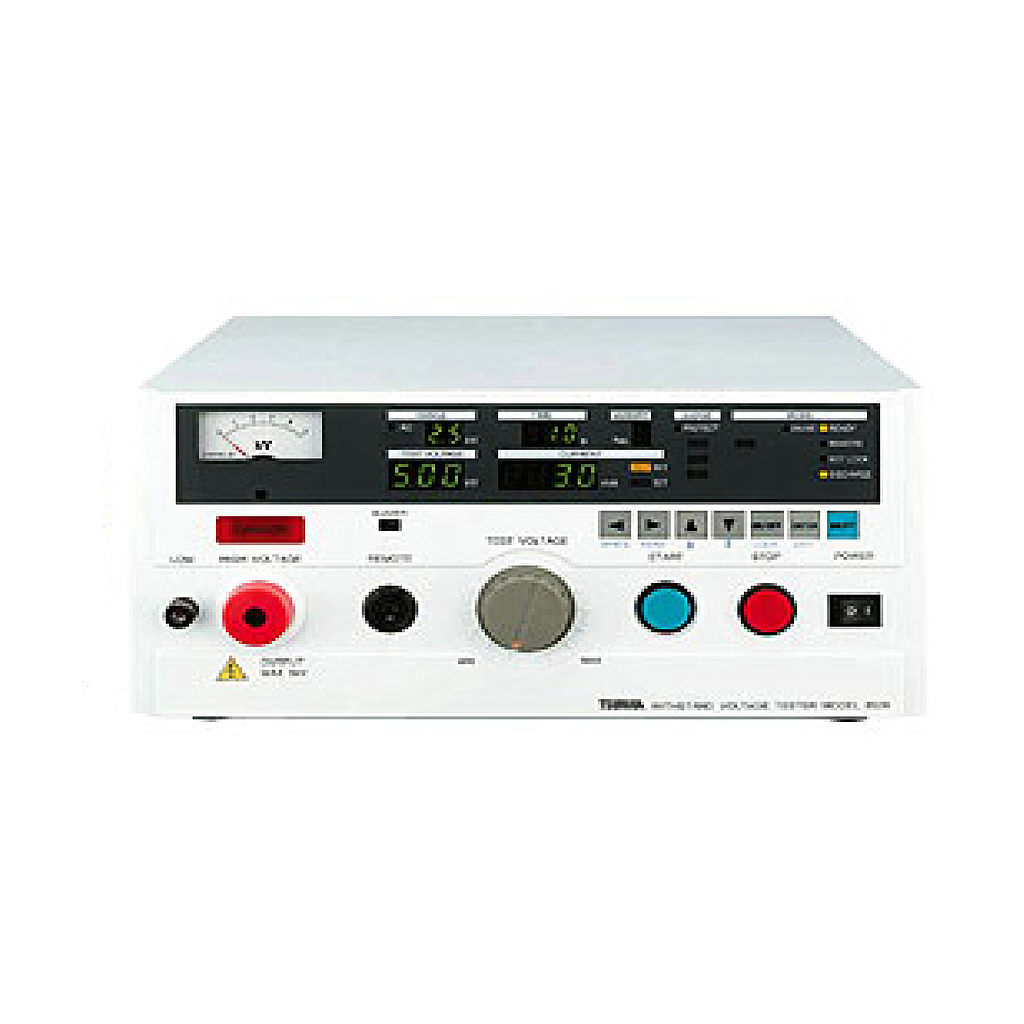

TSURUGA 8528-P Withstand Voltage (AC 5kV)
Manufacturer: TSURUGA Model: 8528-P Guarantee: 12 Month Price (exclude VAT) USD 1,997.18 Price (include VAT) USD 2,156.95 Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636

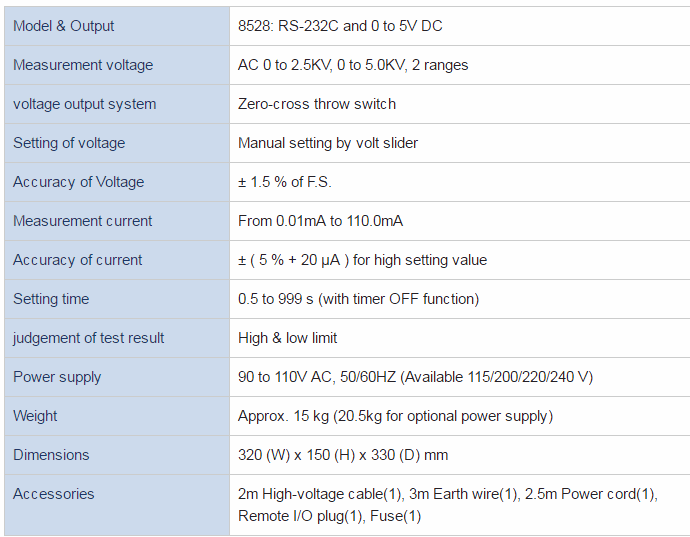

Model & Output 8528: RS-232C and 0 to 5V DC
Measurement voltage AC 0 to 2.5KV, 0 to 5.0KV, 2 ranges
voltage output system Zero-cross throw switch
Setting of voltage Manual setting by volt slider
Accuracy of Voltage ± 1.5 % of F.S.
Measurement current From 0.01mA to 110.0mA
Accuracy of current ± ( 5 % + 20 μA ) for high setting value
Setting time 0.5 to 999 s (with timer OFF function)
judgement of test result High & low limit
Power supply 90 to 110V AC, 50/60HZ (Available 115/200/220/240 V model 8528-P)
Weight Approx. 15 kg (20.5kg for optional power supply)
Dimensions 320 (W) x 150 (H) x 330 (D) mm
Accessories 2m High-voltage cable(1), 3m Earth wire(1), 2.5m Power cord(1),
Remote I/O plug(1), Fuse(1)
