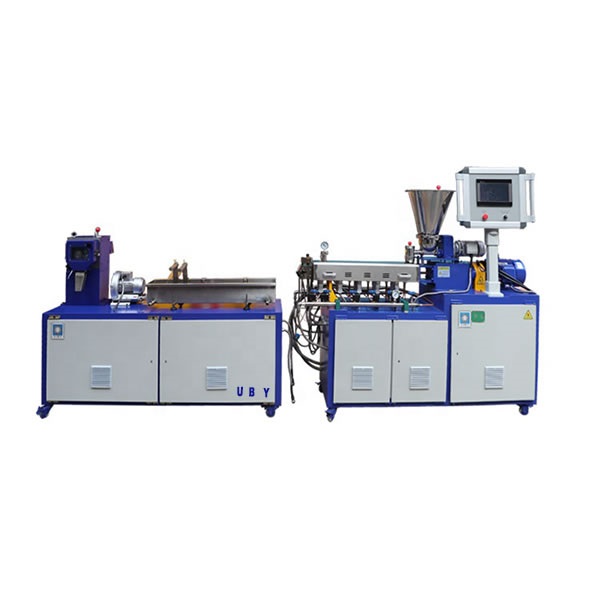

Uby Tech UP-6178D Lab Twin Screw Extrusion Granulator (0-120r/min)
Manufacturer: Uby Tech Model: UP-6178D Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Screw shape: Flat same direction
Screw diameter: Ø21.7mm
Number of screws: Parallel twin screw
Screw speed: 0-120r/min frequency control
Length to diameter ratio: L/D=40:1
Screw material: High speed tool steel W6Mo5Cr4V2, hardness HRC58-62;
Cooling method: Soft water cooling
Water tank capacity: 30L
Cooling pump: 0.37KW
Maximum feed amount: ≥8kg/h;
Feeding method: Twin screw volumetric feed;
Vacuum pump vacuum: 0~0.08MPa
Vacuum pumping capacity: 20M3 /hr
Motor: 0.75KW exchange
Dryer power: 0.37KW
Pelletizer power: 0.75KW/frequency control
Host size: 2300X550X1640mm
Power supply: AC380V, 50Hz
Weight: About 1000kg
