Uby Tech IPX1-2 Vertical Drop Rain Test (Column type) | EMIN.ASIA

Rain Spray Test Chamber, Waterproof test (IP-X)
Uby Tech IPX1-2 Vertical Drop Rain Test (Column type)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

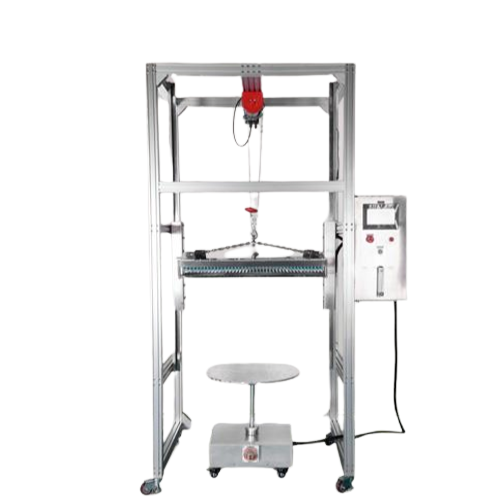

Product image

Uby Tech IPX1-2 Vertical Drop Rain Test (Column type)

ManufacturerUby Tech(View more products from this manufacturer)

ModelIPX1-2

P/NUP-6198-FS12A-1000

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Used to test the IPX1, IPX2 waterproof level of the product

Specifications

External size: About L1500*D1200*H2360mm

Inner size: 1000*1000mm

Drip board size: ￠600mm

Turntable diameter: ￠0.4mm

Turntable height: 20*20mm

Drip aperture: 600mm

Distance between drip holes: IPX1=1mm/min (+0.5mm/min); IPX2=3mm/min (+0.5mm/min)

Rainfall: Manual adjustment

Flow adjustment method: 800—1800mm Adjustable

Drop rain board lifting method: Not liftable (fixed)

Turntable load-bearing: 50KG

Turntable tilt: 0° or 15° (horizontal direction)

Turntable speed: 1 r/min (IPX1), Can be set

Testing time: 0-999 min

Safety protection device: Leakage protection, water shortage protection, short circuit protection

Power supply: 220V, 50Hz

Power: 1kW; Molded aluminum

Datasheet
