Uby Tech IPX3-4 Swing Tube Rain Test (Box Type) | EMIN.ASIA

Rain Spray Test Chamber, Waterproof test (IP-X)
Uby Tech IPX3-4 Swing Tube Rain Test (Box Type)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

Product image

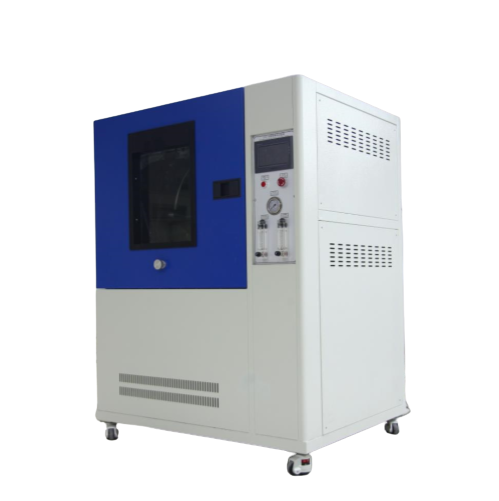

Uby Tech IPX3-4 Swing Tube Rain Test (Box Type)

ManufacturerUby Tech(View more products from this manufacturer)

ModelIPX3-4

P/NUP-6198-FS34B-R400

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Used to test the IPX3 and IPX4 waterproof level of the product

Specifications

External size: L1350*D1120*H1770mm

Inner size: L900*D900*H900mm

Pendulum tube size: R400mm

Sample turntable diameter:￠400mm

Flow: IPX3=1.1L/min±5%; IPX4=1.8L/min±5%

Turntable height range: 350-600mm

Spray hole size: ￠0.4mm

Pendulum tube inner diameter: 15mm

Maximum load-bearing capacity of turntable: 50kg

Turntable rotation speed: 1-5r/min(Precisely adjustable)

Turntable rotation method: Forward rotation/forward&reverse rotation alternately

Swing tube angle: 120° (IPX3), 350° (IPX4)

Swing speed of pendulum tube: 240° back and forth 4S, 720°back and forth 12S (Precise control)

Power supply: 220V, 50Hz

Test sample power: 220V, 50Hz

Power: 1.0KW

Safety protection function: Leakage protection, water shortage protection, short circuit protection

Datasheet
