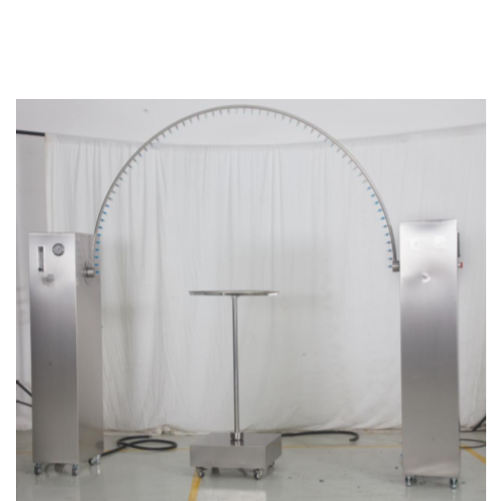

Uby Tech IPX3-4 Swing Tube Rain Test (Open Type)
Manufacturer: Uby Tech Model: IPX3-4 P/N: UP-6198-FS34C-R1000 Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Used to test the IPX3 and IPX4 waterproof level of the product
Specifications
Size (in working): L2850*D2020*H2350mm
Pendulum tube size: R1000mm
Sample turntable diameter:￠800mm
Flow: IPX3=2.9L/min±5%; IPX4=4.3L/min±5%
Turntable height range: 1300-1700mm
Spray hole size: ￠0.4mm
Pendulum tube inner diameter: 15mm
Maximum load-bearing capacity of turntable: 50kg
Turntable rotation speed: 1-5r/min(Precisely adjustable)
Turntable rotation method: Forward rotation/forward&reverse rotation alternately
Swing tube angle: 120° (IPX3), 350° (IPX4)
Swing speed of pendulum tube: 240° back and forth 4S, 720°back and forth 12S (Precise control)
Power supply: 220V, 50Hz
Test sample power: 220V, 50Hz
Power: 1.0KW
Safety protection function: Leakage protection, water shortage protection, short circuit protection
