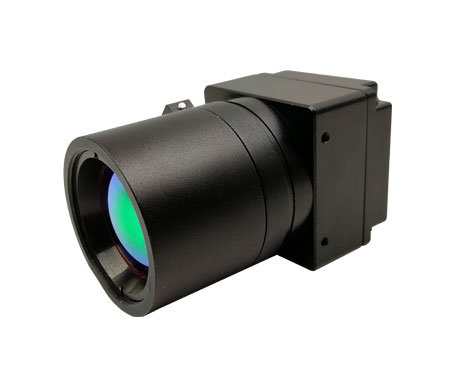

Detector Data:
Material: aSi
IR resolution: 640×480
Pixel pitch: 17μm
Spectral range: 7.5~14μm
NETD/Sensitivity: ≤50mK
Lens Data:
Lens(optional):
35mm, 50mm, 75mm athermal lenses,
100mm, 150mm motorized lens,
25~100mm, 30~150mm, 25~225mm zoom continuos lens,
60/150mm dual, FOV lens(optional)
Image Performance:
NUC: Shutterless technology
Image enhancement: IVE image enhancement algorithm
Frequency: 50Hz
Amplification: 2X, 4X
Polarity/LUT mode: Black hot/White hot
Startup time: 3s
Image gain: Auto/Manual
Cross cursor: ON/OFF
Interface:
Primary electrical connector: 40pin
Control: RS232
Analog video output: PAL
Digital video output: Cameralink、 LVCMOS、 8-Bit BT656 optional
Keypad: 5 button keyboard
Power System:
Working voltage DC: +2.5V～+5.5V(standard: 3.7V)
Power consumption: 1W
Reverse polarity protection: Yes
Over&Under voltage protection: Yes
Environment Parameters:
Operating temperature range: -40℃～+60℃
Storage temperature range: -50℃～+70℃
Humidity: 5%～95% (non-condense)
Shock: GJB150-16 2.3.1, 100g; 6msec
Vibration: GJB150-16 2.3.1, 4.3g 3 axes, 8h
Physical data:
Size: 38mm×38mm×21mm (From FPA to back)
Weight: ≤55g(without lens)
Mounting: M2×0.4
Packing:
Standard Thermal imaging core, interface cable, software CD, warranty card, calibration certificate
