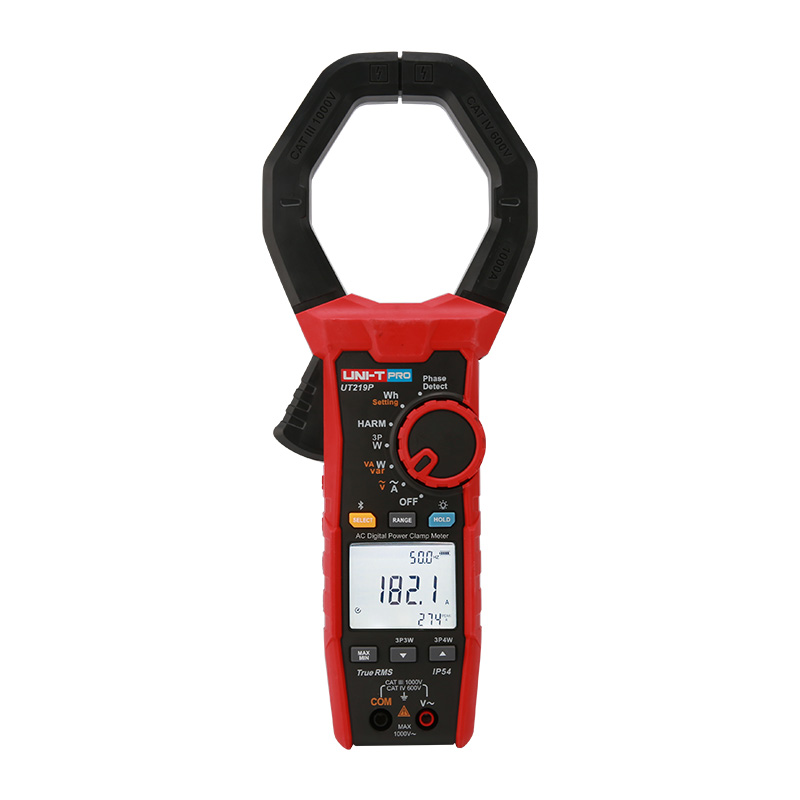

UNI-T UT219P AC Digital Power Clamp Meter (1000A, 1000V, True RMS)

AC current(A): 1000A, accuracy: ±(1.5%+3)

AC voltage(V): 1000V, accuracy: ±（0.7%＋3）

Power(single phase): 1000KW, accuracy: ±（1.7%+5）

Power (3-phase & 3-wires): 1732KW, accuracy: ±（1.7%+5）

Power (3-phase & 4-wires): 3000KW, accuracy: ±（1.7%+5）

Power frequency (Hz): 15Hz～1000Hz, accuracy: ±（0.3%+3）

Phase angle (-180°~ 179.9°)

15Hz～40Hz, accuracy: ±5°

40Hz～70Hz, accuracy: ±3°

70Hz～1000Hz, accuracy: ±5°

Jaw opening: 75mm

Phase detection: √(80V~1000V), Positive and Negative

AC/DC PEAK measurement: √

Harmonic measurement: 32 times

Display mode: LCD screen, 4 kinds of results at the same time

Display count: 9999

Bluetooth app: √

True RMS: √

Overload indication: √

High voltage indication: √

High voltage overload warning: √

Low battery indication: √

Data hold: √

Auto power off:Around 15 minutes

Max/Min: √
