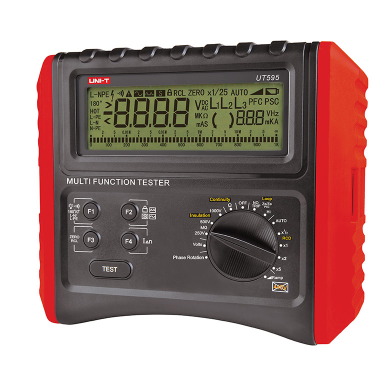

UNI-T UT595 Multifunction Installation Tester (250V~1000V DC, 200mA)

Insulation resistance (Ω)

Output voltage:250V/500V/1000V

250V0.05MΩ～250MΩ

500V0.05MΩ～500MΩ

1000V0.05MΩ～1000MΩ

Short-circuit current: <2mA

Low-resistance continuity test

Range:0.00Ω～199Ω

Test current:0.00～2Ω: >200mA

Range:0.01Ω～2000Ω

Line impedance (Ω)

Operating voltage (Frequency):195V～440V (45Hz～65Hz)

Test current:20A

PFC test:0kA～26kA

Range:0.01Ω～2000Ω

Loop impedance (Ω)

Operating voltage (Frequency):195V～253V (45Hz～65Hz)

Test current:20A

PFC test:0kA～26kA

Range:1.00Ω～2000Ω

Non-trip loop impedance (Ω)

Range:1.00Ω～2000Ω

Operating voltage (Frequency):195V～253V (45Hz～65Hz)

Test current:15mA

PFC test:0kA～26kA

RCD test

Operating voltage (Frequency):195V～253V (45Hz～65Hz)

Test current:10mA/30mA/100mA/300mA/500mA

Phase sequence test

Operating voltage (Frequency):100V～440V (45Hz～65Hz)

DisplayPhase sequence: L1→ L2→ L3, forward rotation; L1→ L3→ L2 reverse rotation

Ramp RCD test

Test current:10mA/30mA/100mA/300mA/500mA

AC voltage (V)

Range:0V～440V

Frequency response:45Hz～60Hz

Resolution:1V

Features

Display count:　9999

Auto power off:　√

Low battery indication:　√

Data storage:　√

LCD backlight:　√

Auto half-wave test:　√

RCD count down test:30s

RCD half-wave test:　√

Phase conversion (RCD):0° and 180°

General Characteristics

Power:1.5V battery (5#) × 6

LCD size:125mm × 37mm

Product color:Red and grey

Product net weight:1000g

Product size:210mm × 175mm × 90 mm

Standard accessories:Battery, test leads (red×1, green×1, black×1), special power test lead, remote-control test lead
