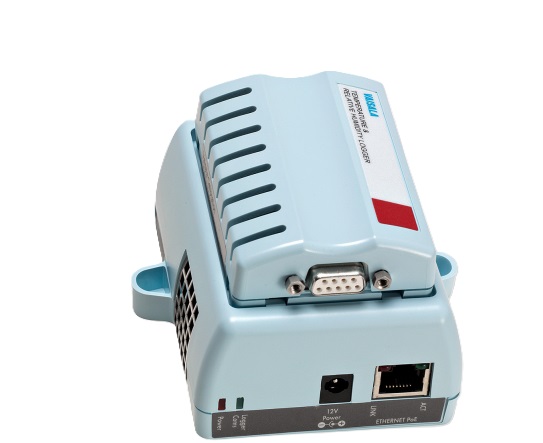

VAISALA CDL-VNET-P vNet Power over Ethernet Data Logger Interface (−25 … +70 °C (−13 … +158 °F))
Manufacturer: VAISALA Model: CDL-VNET-P Origin: Finland - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
- Heating Effect on Measurements: Temperature rise from electronics (important only for data loggers with internal sensors): < 0.05 °C as seen by the data logger sensor
- Ethernet connectivity: IEEE 802.3af (Class 1), bandwidth 10Base-T
- Connectivity cable: Category 5/5e; RJ-45 connector; 1.83 m (6 ft)
- Operating voltage: 12 … 30 VDC; Plugs into vNet jack labeled 12 V
- Power Consumption:
Typical: 625 mW
Maximum: 700 mW
- Power Supply:
North America:
12 VDC / 0.5 A max. out
120 VAC in
International:
12 VDC / 1.66 A max. out
100 … 240 VAC in
- Dimensions (H × W × L): 43 × 102 × 102 mm (1.7 × 4.0 × 4.0 in)
- Weight: 180 g (6.3 oz)
