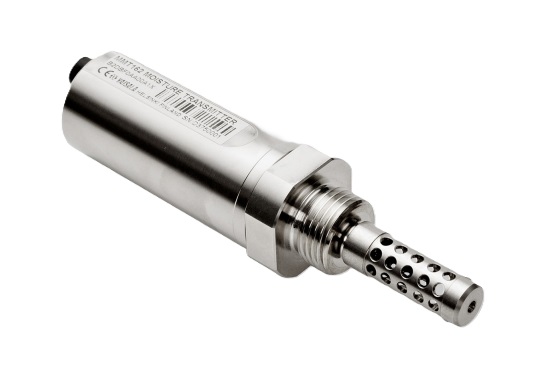

VAISALA MMT162 Moisture and Temperature Transmitter for Oil

Sensor: HUMICAP

- Water activity:

Measurement range: 0–1 aw

Accuracy (including non-linearity, hysteresis, and repeatability):

0–0.9 aw: ± 0.02 aw

0.9–1.0 aw: ± 0.03 aw

Response time in oil flow (typical): < 1 min (dry-wet)

- Temperature:

Accuracy at +20°C (+68°F): ± 0.2°C (0.36°F)

Cable connections (2 ports): M8 4-pin male

Mechanical connections with bonded seal ring (washer): G 1/2" ISO or NPT 1/2’’

Weight: 200 g (7 oz)

Voltage output: 16–28 V DC

Current output: 22–28 V DC

Probe body material: Stainless steel (AISI 316L)

IP rating: IP66
