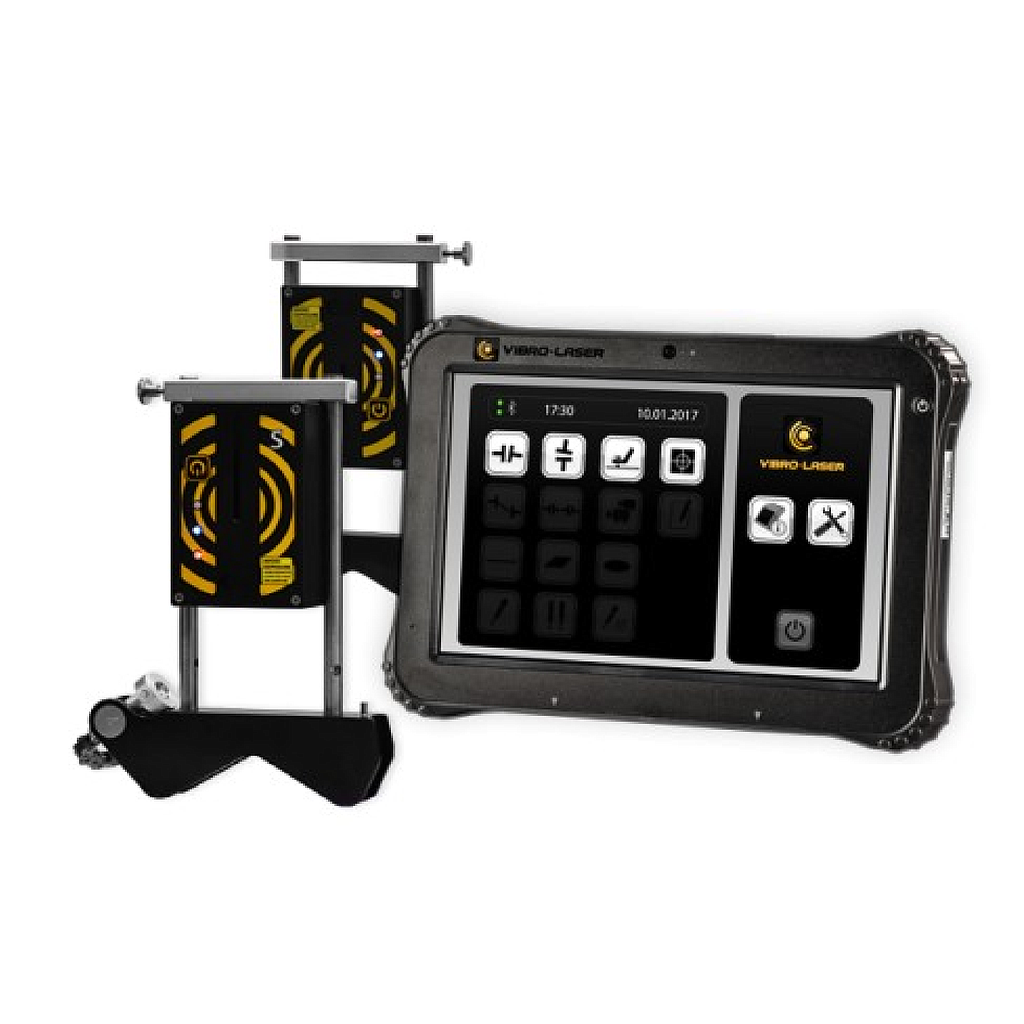

VIBRO-LASER Laser Shaft Alignment System (10m, wireless)

DISPLAY UNIT (option Table tablet can Android and IOS, Windows )

+ Display: 8" diagonal widescreen

+ Dimensions: 217mm*136mm*18mm

+ Weight: 720g

+ Sealing: IP 67 (water and dust

+ Drop / Shock: 26 repeated drops to 1 operating unit on

+ Operating Temp: -20° C to +60° C

+ Humidity: 95% non-condensing

+ Storage Drive: 32GB

+ Display: 1280 (W) x 800 (H)

+ Battery System: 3.7V, 10000 mAh; 6-8 hour battery life

+ Camera: 5MP integrated (rear-facing) and 2MP integrated (front-facing)

+ Resistance: with the height of 1.2m** withstands multiple drops impact

SENSOR UNITS

+ Material: Anodized aluminium

+ Dimensions: 90 x 60 x 32 mm

+ Laser radiation: Diode laser with laser wavelength 635 nm, class II

+ Laser power: < 1 mW

+ Measurement distance: Up to 10m

+ Detector length: 30mm

+ Detector type: Digital CCD detector

+ Detector resolution 0,001mm

+ Measurement accuracy 0,3% ± 7 μm

+ Inclinometer 0.1

+ Degree of protection IP65

+ Operating time up to 20 hours

+ Bluetooth 4.0

+ Operating temperature 14° F to 140° F (-10° C to +60° C

Complete set

+ Display unit (option Tablet)

+ Sensor unit M

+ Sensor unit S

+ Complete v-bracket

+ Carring bag

+ Chain with lock

+ Display unit adapter

+ Sensor units adapter

+ Turn key

+ USB cable

+ Tape measure

+ Manual
