Function:Wireless high voltage-satellite timing-phase detecting, frequency, phase, phase sequence, and electricity inspection.
Power:DC 3.7V rechargeable Li-battery, USB charge port, continually working 10h
Phase detecting:Satellite second pulse precision mode, satellite timing mode, common mode
Transmission mode:315MHz,433MHz wireless transfer
Distance of phase detecting
Satellite timing phase detector distance up to 500km
Common phase detector: 160m
Display mode:3.5 LCD display
Range:
Rank of phase detecting:AC 10V～550kV
Phase degree:0°～360°Frequency:45Hz～75Hz
Resolution:1°；0.1Hz
Accuracy (23℃±5℃,80%RH below)
Satellite phase Detector degree tolerance:≤±5°
Common detector tolerance:≤±10°
Frequency tolerance:≤±2Hz
Phase judgement
Same phase: XY receiver detected phase degree variance at range of 0°～30° ；
Heterogenous phase: XY receiver detected phase degree at range of 90°～120° or 210°～270°
Phonetic function:Voice report: Same phase, Heterogenous phase, normal X signal,normal Y signal
Satellite Timing validity:Once the satellite timing successfully, validity time over 30mins to meet the underground phase detecting.
Insulation rod length:Stretched length 5m；carrying on length 1m
Method of phase detecting
Non-contact:35kV above bare wire or 110kV above.(testing with insulation rod)
Voice indication:The sound of the probe "Du - Du - Du" buzz
Mode switch:Automatic shift
Sampling speed:2times/sec
Connecting satellite time:After turning on detector, 1st search satellite takes 3min about, 2nd search satellite takes 30sec, The follow-up heat starts searching satellite time about 1 second, detector positive set up and keep level of heaven
Timing accuracy:Less 30nS
Instrument size

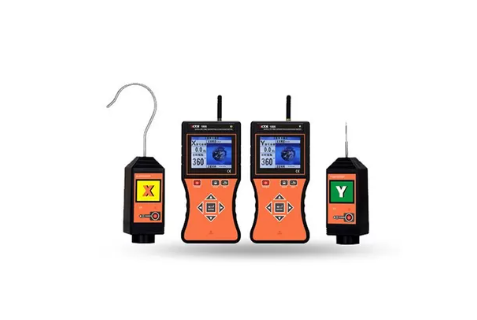

Detector: LxWxT 145mm×60mm×48mm
Receiver:LxWxT 250mm×100mm×40mm
Background brightness adjust:press ↑ ↓ adjust background brightness
Induction strength control:According to the different electric field of induction, the detector can automatically control magnification and facilitate the detecting phase in dense wire area.
Hold data:1st Press HOLD to save date,2nd cancel date
Quit:Press ESC button return interface
Data lookup:Press ENTER look up data, press ↑↓ review
Symbol of satellite searching:Dynamic display “----”symbol at period of search satellite
Automatically power off:Standby 30min, then power off automatically for power saving
Rated current
Detector:35mA max；
Receiver:300mA max
Batter voltage:The detector low battery symbol display when voltage lower 3.2V, remind of charge battery
Instrument weight
Detector:205g(contains battery)
Receiver:395g(contains battery)
Insulation rod:1.45kg
Total weight:12.6kg(contains meter box)
Working humiture:-10℃～40℃；80%Rh below
Storage humiture:-10℃～60℃；70%Rh below
interfere:No interfere except especially Strong magnetic field, no interfere except same frequency 433MHz,315MHz
Insulation strength
Insulation rod:AC 110kV/rms(5sections after stretched)
detector:2000V/rms( rod connection ends to detector top)
receiver:2000V/rms(outer shell two ends )
Structure:Anti leak type II,IP63
Proper Standard
GB13398 92, GB311.1 - 311.6 - 8, 3DL408 91 standard and national new electric power industry standard "DL/T971-2005 for universal technical conditions for portable 1kV to 35kV portable phase detector apparatus for live work"
Ideal for IEC61481－A2:2004；IEC 61243－1 ed.2:2003 standard
