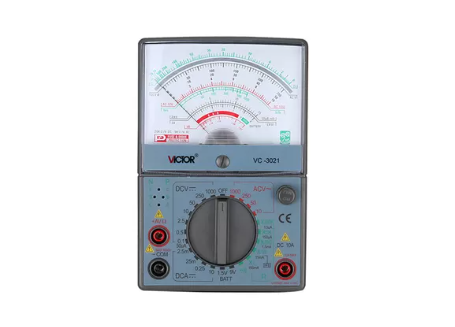

VICTOR 3021 Analog Multimeter (10ADC, 1000VDC/AC)

Drop shock proof: Taut-band structure is adopted in the meter section. The meter section is designed to withstand shock.

Circuit protection: The circuit is protected by fuse even when voltage of up to AC 230V is impressed on each range for 5 seconds.

Internal battery: R6 (IEC) or UM-3 1.5V×2

Internal fuse: 0.5A/250V 5.2mm dia ×20mm

Standard calibration temp

And humidity range: 23±2℃ 45-75% RH

Operating temperature and

humidity range.: 0-40℃, 80%RH max. No condensation

Withstand voltage: 3KV AC(1 min) between input terminal and case

DCV :

0.1V : 士5% fs

0.5V/2.5V/10V/50V/250V/1000V : 士3% fs

ACV :

10V/50V/250V/1000V : 士4% fs

DCA : 50uA/2.5mA/25mA/0.25A/10A : 士3% fs

Ω :

2kΩ 20kΩ/200kΩ/2MΩ : 士3%

200MΩ : 士5%

dB :

0~ 150mA (x1)

0~ 15mA (x10)

0~ 15mA (x1k)

0~ 1.5uA (x100k)

hFE : 1000 (x10)

Dimensions and weight: 150×100×38mm approx. 300g

Accessories: Instruction manual, Test leads.
