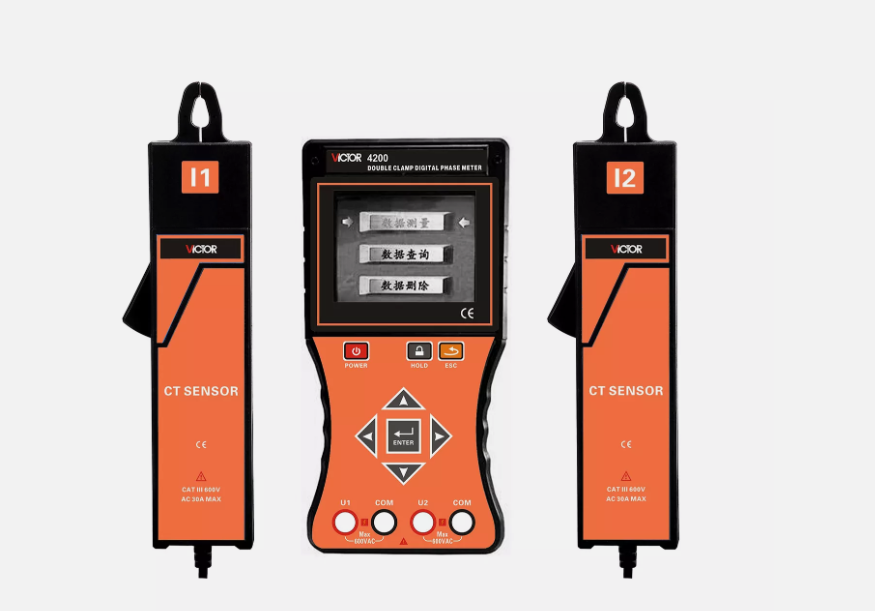

VICTOR 4200 Digital phase meter (600VAC, 20AAC, 12kW)

Phase : 0～360° ±1°

Voltage: AC 0～600V ±0.5%

Current : AC 0mA～20A ±0.5%

Frequency:45.00Hz~65.00Hz ±1%

Active Power:0.0W~12kW ±1%

Reactive Power:0.0VAR~12kVAR ±1%

Apparent Power:0.0VA~12KVA ±1%

Power Factor:-1~+1 ±0.03

Features

Clamp Size: Ф7.5mm×13mm

Display: 3.5 inch LCD

Backlight Brightness Adjustment  √

Operation  Way: Manual   Range

Sample Rate: 2   times/s

Data Store: 99 groups

Data Hold  √

Auto Power Off: 15   minutes idle

Low Battery Indication  √

Test Leads Length: 1.5m

Clamp Probe Length: 2m

Interface: USB

Operation Condition: (-10～40)℃;   <80%Rh

Storage Condition: (-10～60)℃ ;   <70%Rh

General Information

Power Supply: Rechargeable   lithium battery

Product Size: 207mm×101mm×45mm

Product Weight: Main Unit:370g / Clamps :185gx2/ Test Leads : 250g

Standard Accessories: Manual, Battery, Test Leadsx4, Pouch Clampsx2,Charger+USB cable ,Software CD, Tool   Case
