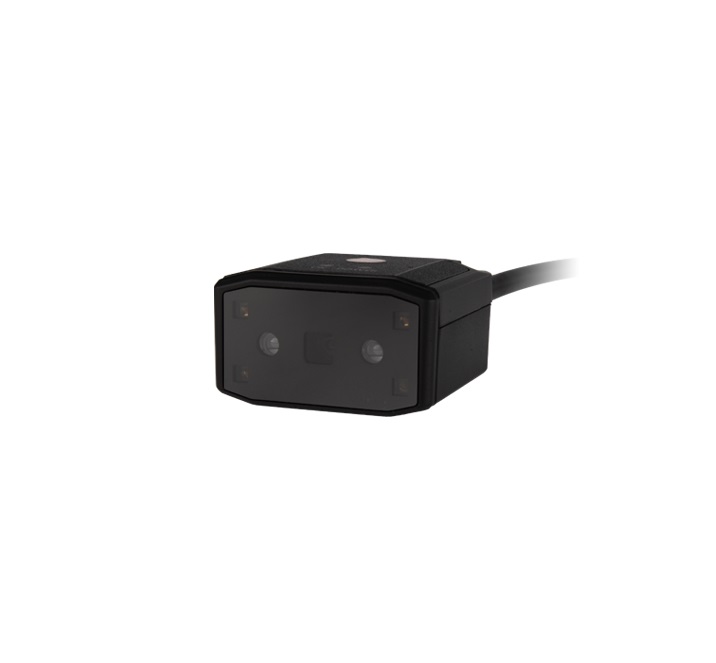

ViE Technologies XS-90 Smart Code Reader Solution (1.30 megapixel,1280 x 1024; with Non-polarised Red LED)

Type: Description: XS-90 (1.30 megapixels)

Receiver: Sensor: CMOS (Mono, Global Shutter)

Resolution: 1280 x 1024

Focus: Fixed

Maximum Frame Rate (FPS): 50

Focal Length: 4.7 mm (0.1850”)

Pixel Size: 2.7 μm × 2.7 μm

Sensor Size: 1/4"

Emitter: Illumination Light Source Option: High Intensity Red LED

Reading Specifications: Supported Symbols: 2D Codes: QR Code and Data Matrix, Barcodes: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ITF25, ITF14, UPCA and UPCE

Minimum Resolution: 2D Codes: 0.278 mm (0.0109”), Barcodes: 0.070 mm (0.0027”)

Reading Distance: 120 mm (4.7244”)

Reading Field of View

(Working distance at 120 mm (4.7244”)): 89.00 mm x 72.00 mm (3.5039” x 2.8346”)

Maximum Reading Speed: 30 codes/sec

I/O Specifications

Number of Control Inputs: 2

Number of Control Outputs: 2

Ethernet Supported Protocol: SmartSDK, TCP Client, Serial, FTP, TCP Server and UDP

Serial Communication Standard: RS-232C Compliant

Environment Resistance

Enclosure Rating: IP54 *2

Surrounding Temperature: 0 to + 45 ° C (32 to 113 ° F)

Ambient Storage Temperature: -30 to + 70 ° C (-22 to 158 ° F)

Rating

Power Consumption: 2.4 W

Power Supply Voltage: 24 VDC

Current Consumption: 0.1 A

Weight: Approx. 70 g (0.1543 lb.)

Dimension (L x W x H): 45 mm x 43 mm x 25 mm (1.7716” x 1.6929” x 0.9842”)
