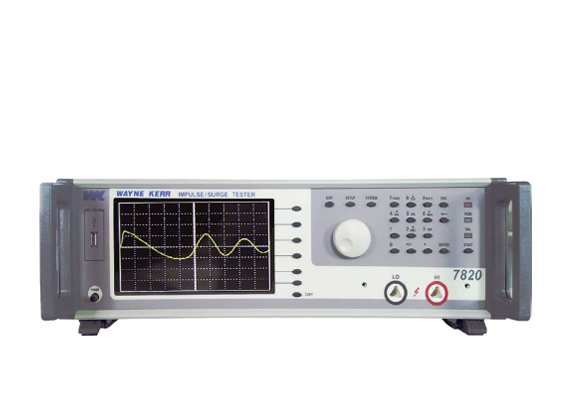

Wayne Kerr WK 7820-2 Impulse Tester (100V - 5000V)
Manufacturer: Wayne Kerr Model: WK 7820-2 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Impulse voltage: 100V - 5000V, 10V steps
Voltage accuracy: ±(5% set value +15V)
Readback accuracy: ±(5% actual value +15V)
Inductance test range: ≥10uH
Impulse energy: Max.: 0.25 Joule
Test speed: 6 times/second
Channels: 1
Pulses applied: Max.: 32
Input Impedance: 5MΩ
Display: 800x480 dots, 65k color TFT; Waveform Display Range: 600x256
Waveform Acquisition:
Sampling rate: Max. 200Msps, 8 levels adjustable
Resolution: 8 Bits
Memory Depth: 6k Bytes
Average: 1 to 32
Waveform Measurement: Voltage/Frequency/Time
Memory: 20 groups of standard waveform data and instrument setup can be stored in internal non-volatile memory. USB flash memory can be used as external memory.
Interface: Handler, RS232C, USB Device, USB Host, LAN
Power supply: 220V ±10% 50Hz/60Hz ±5%
Power consumption: ≤200VA
Working Environment:
Temperature: 0℃ - 40℃
Humidity: ≤75% R.H.
The WK 7820 Series is particularly useful for:
Quality control and R&D in manufacturing environments dealing with electrical components and assemblies.
Safety testing in electrical engineering and construction sectors.
Educational and testing institutions requiring detailed analysis and characterization of electrical components.
