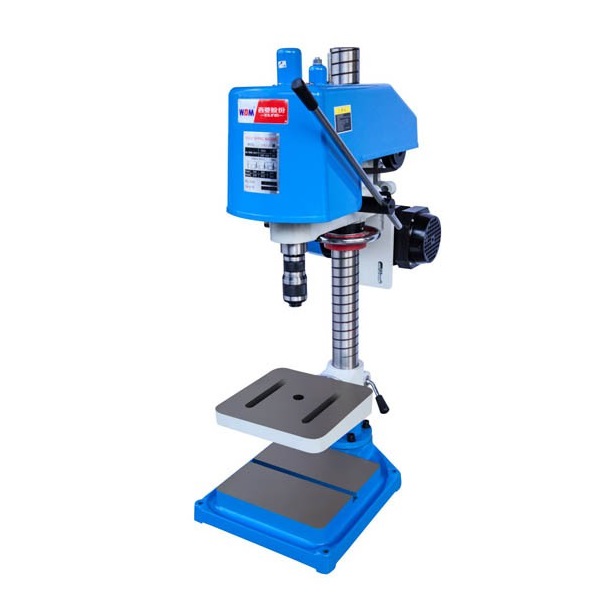

WDDM SWJ-24D Tapping Machine (1100W)
Manufacturer: WDDM Model: SWJ-24D - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Tapping capacity: M20/M24
Motor type: squirrel-cage rotor
Motor power: 1100W
Voltage: 380V 3 Phase 50 HZ
Spindle type: B22
Spindle stroke (drill head): 50mm
Speed Levels: 3 levels
Spindle speed range: 230/350/500rpm
Table type: Square table
Working table size: 280mm x 280mm
Number of grooves on the workbench: 2 grooves
Column diameter: 70mm
Distance from spindle nose to table: 545mm
Distance from spindle nose to base: 760mm
Distance from spindle to column: 198mm
Machine height: 1057mm
Base dimensions: 495x375mm
Packing dimensions: 780x480x1160mm
Weight: 140/160kg
