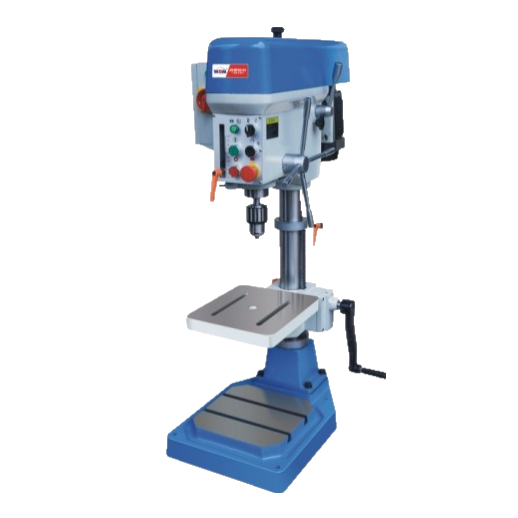

WDDM Z4116G Bench Strong Drilling Machine (750W)
Manufacturer: WDDM Model: Z4116G - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Max.Drilling capacity: Φ16/Φ13
Max.Tapping capacity: M12/M10
Diameter of column: 70mm
Spindle travel: 130mm
Distance spindle axis to column: 193mm
Max.Distance spindle nose to table: 330mm
Max.Distance spindle nose to base: 613mm
Spindle Taper: MT2/B16
No. of Speeds: 5speeds
Spindle speeds range: 320~2730r/min
Dimension of workable surface: 265x285mm
Dimension of base: 360x480mm
Overall height: 1130mm
Motor: 0.55KW(6P)
Approx.net weight: 145kg
Packing size: 850x540x1282mm
