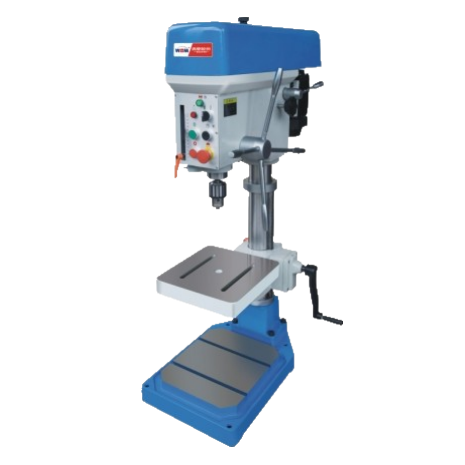

WDDM Z4120G Bench Strong Drilling Machine (1100W)
Manufacturer: WDDM Model: Z4120G - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Max.Drilling capacity: 20
Max.Tapping capacity: M16
Diameter of column: 85mm
Spindle travel: 135mm
Distance spindle axis to column: 260mm
Max.Distance spindle nose to table: 366mm
Max.Distance spindle nose to base: 678mm
Spindle Taper: MT2
No. of Speeds: 5speeds
Spindle speeds range: 290~2150r/min
Dimension of workable surface: 300mm x 320mm
Dimension of base: 376mm x 566mm
Overall height: 1245mm
Motor: 1.1kw(6P)
Approx.net weight: 179kg
Packing size: 990x564x1402mm
