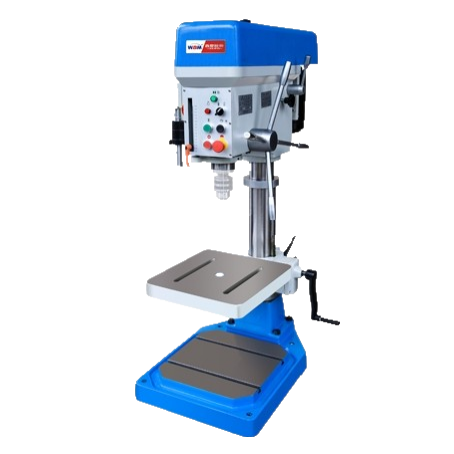

WDDM Z4132G Bench Strong Drilling Machine (1500W)

Max.Drilling capacity: 31.75mm

Max.Tapping capacity: M24(cast iron)/M20(steel)

Diameter of column: Φ100

Spindle travel: 150mm

Distance spindle axis to column: 265mm

Max.Distance spindle nose to table: 390mm

Max.Distance spindle nose to base: 745mm

Spindle Taper: MT3

No. of Speeds: 5speeds

Spindle speeds range: 280~1875r/min

Dimension of workable surface: 380x400mm

Dimension of base: 645x470mm

Overall height: 1370mm

Motor: 1.5KW(4P)

Approx.net weight: 230kg

Packing size: 1039x644x1512mm
