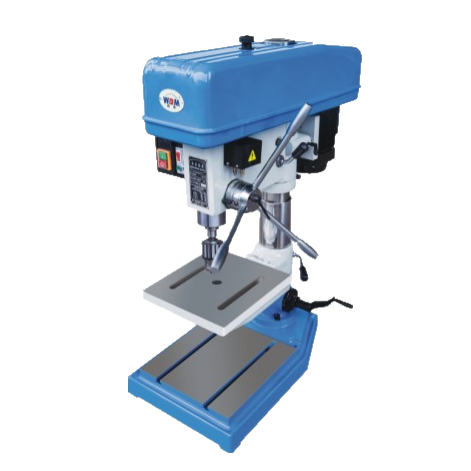

WDDM ZS4125D Drilling & Tapping Machine (1100W)
Manufacturer: WDDM Model: ZS4125D - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Max.drilling capacity: Ø25mm
Max.tapping capacity: M20
Diameter of column: 85mm
Spindle travel: 125mm
Distance from spindle to column: 240mm
Max.distance spindle nose to table: 297mm
Max.distance spindle nose to base: 560mm
Spindler taper: MT3
Spindle speeds range: 290~2150r/min
Spindle speeds series: 5speeds
Dimension of table surface: 280mm x 300mm
Dimension of base: 590mmx370mm
Overall height: 1127mm
Power of motor: 1100W
G.W/N.W: 165kg/140kg
Packing dimension: 82cmx48cmx102cm
