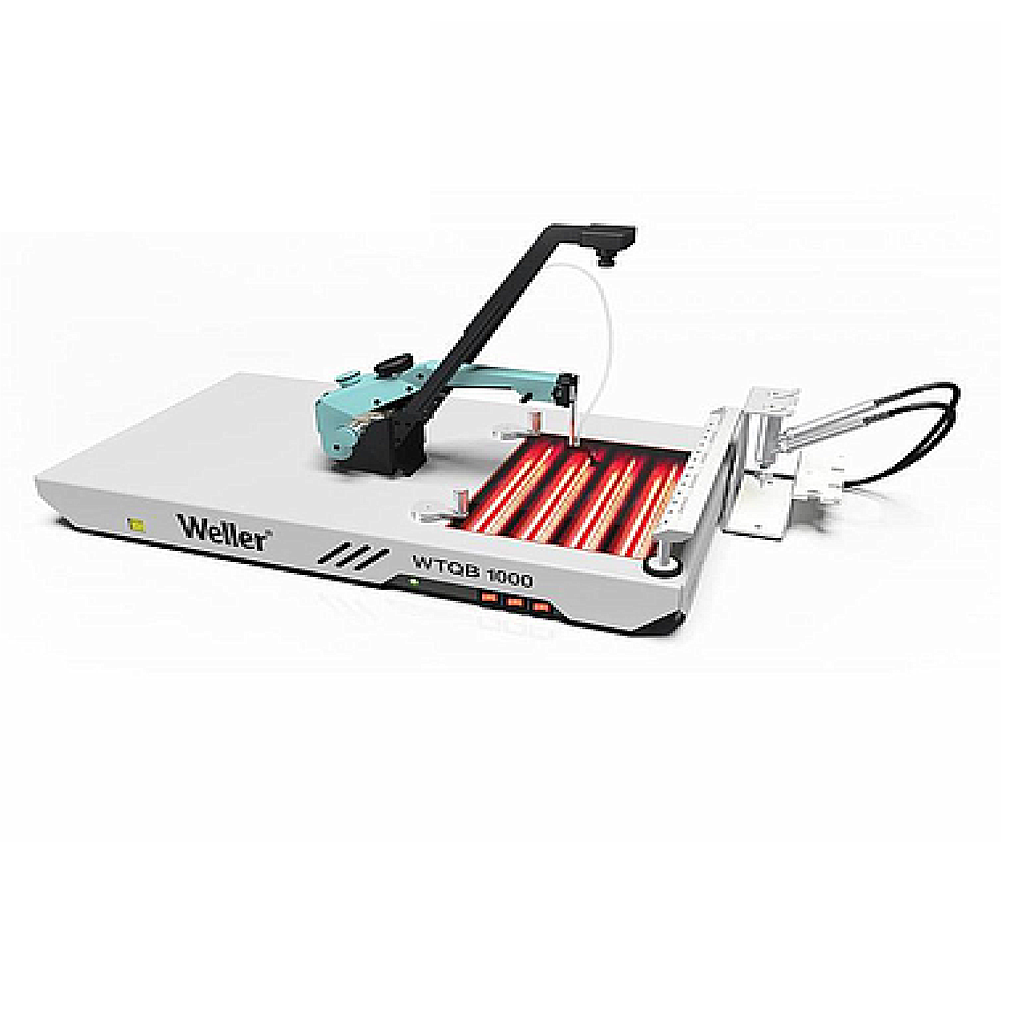

Weller WTQB 1000 Rework Station
Manufacturer: WELLER Model: WTQB 1000 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Dimensions W x D x H (mm): 660 x 360 x 390
Voltage :230 V / 50 Hz
Nominal power top heater (W): 300
Compressed air connection: Air hose 6 mm
Optical placement system: Optical positioning frame
Compressed air connection / remark: dry, oil free
Thermocouple port: 2 x Type-K
Optical placement
Temp. range / Top Heater (°C): 150 - 450
Nominal power bottom heater (W): 2000
Power consumption: 2644 VA
Compressed air kPa/bar: 550 - 800 / 5,5 - 8,0
Recommended component size (mm): 1 x 1 - 42 x 42
Recommended PCB sice (mm): Max. PCB size: 200 x 260 mm
Workspace L x B x H (mm): 800 x 500 x 400
Noise level (distance 1 m) dB(A): 58 - 62
Max. air flow rate l/min: 6 - 35
Air consumption l/min: 35 - 85
Option:
WTQB 1000 VAKUUM PICK-UP 3MM: T0051394299
WTQB 1000 VAKUUM PICK-UP 10MM: T0051394699
WTQB 1000 THERMOC. TYPE K 0,1MM/1,3M W. PLUG: T0051396999
WTQB 1000 Nozzle BGA 15x15: T0051392199
WTQB 1000 Nozzle BGA 23x23: T0051392299
WTQB 1000 Nozzle BGA 27x27: T0051392399
WTQB 1000 Nozzle BGA 31x31: T0051392499
WTQB 1000 Nozzle BGA 35x35: T0051392599
WTQB 1000 Nozzle BGA 37,5x37,5: T0051392699
WTQB 1000 Nozzle BGA 40x40: T0051392799
WTQB 1000 Nozzle QFP 15x15: 0051392899
WTQB 1000 NOZZLE QFP 20x20: T0051392999
WTQB 1000 NOZZLE QFP 20x26: T0051393099
WTQB 1000 NOZZLE QFP 25x25: T0051393199
WTQB 1000 NOZZLE QFP 30x30: T0051393299
WTQB 1000 NOZZLE QFP 36x36: T0051393399
WTQB 1000 NOZZLE QFP 45x45: T0051393499
WTQB 1000 NOZZLE CSP QFN 9x9: T0051393599
WTQB 1000 NOZZLE CSP QFN 11x11: T0051393699
WTQB 1000 NOZZLE CSP QFN 13x13: T0051393799
WTQB 1000 NOZZLE CSP QFN 16x16: T0051393899
