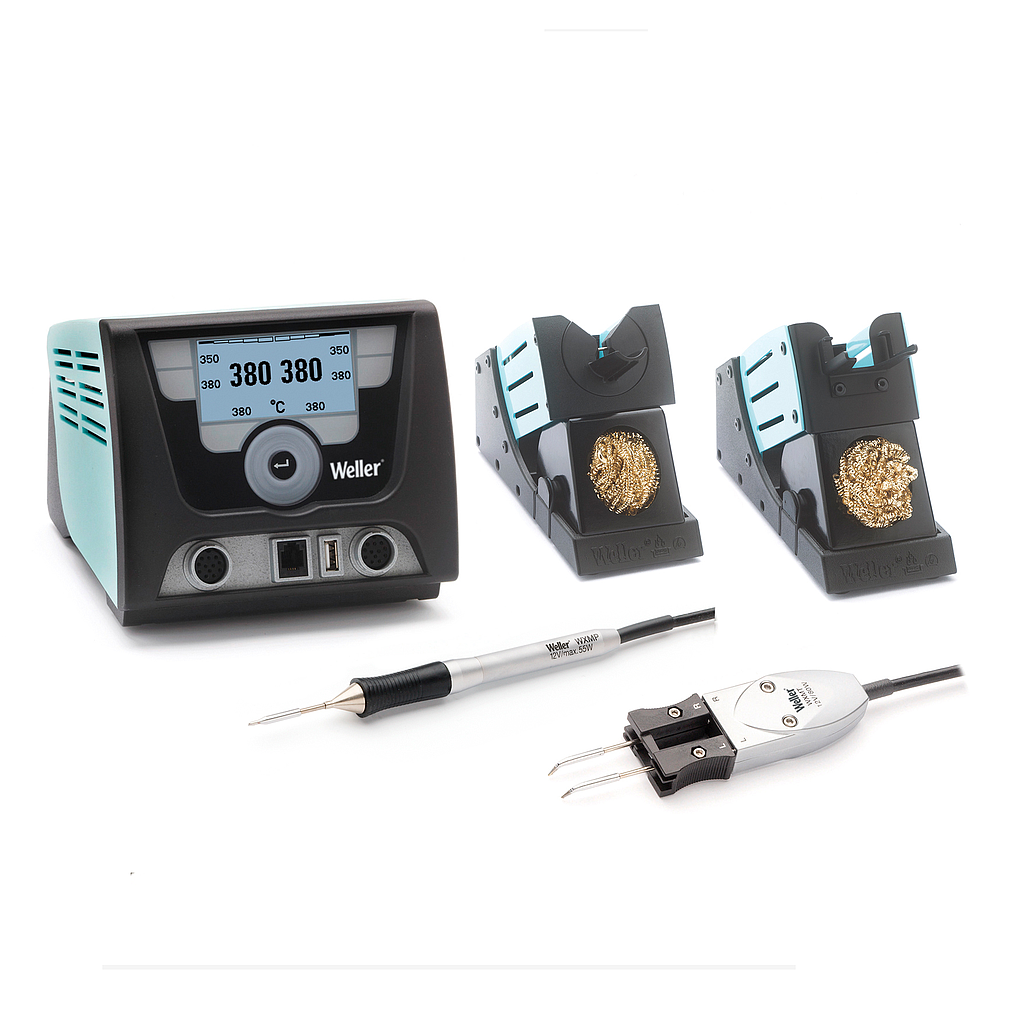

WX 2021 Set Power unit with 2 channels | |
| This station is ESD safe. |
| Dimensions L x W x H: | 170 x 151 x 130 mm (6,69 x 5,94 x 5,12 inch) |
| Weight: | approx. 3,2 kg |
| Channels: | 2 |
| Power supply: | 230 V, 50 Hz |
| Power consumption: | 200 W (255 W) |
| Protection class: | I |
| Temperature range: | Adjustable from 50°C - 550°C (150°F - 999°C) Adjustable temperature range varies among tools |
| Temperature accuracy: | ± 9°C (± 17°F) |
| Temperature stability: | ± 2°C (± 4°F) |
| Equipotential bonding: | Via 3,5 mm pawl socket on back of device |
| Material touch panel: | Made of antistatic coated material |
| Dimensions touch panel: | 74 x 38 mm |
| Resolution: | 255 x 127 (128) dots |
| Display backlighting: | 4 LEDs |
| Equipotentional bonding: | The 3,5 mm switch offers four different options: |
| USB interface: | USB interface in front of firmware updates, parameterization and monitoring USB interface supports all standard USB flash drive types |
T
WXMP Set Active Tip Heating Technology | |
| Voltage (heater): | 12 V |
| Heating output: | 40 W (55 W with RT 11) |
| Heat-up time: | approx. 3 s 50°C - 350°C (120°F - 660°F) |
| Temperature range: | 100°C - 450°C (212°F - 850°F) |
| Tip type: | RT |
| Connectable to: | Weller WX Stations |
WXMT Set Micro desoldering tweezer | |
| Voltage (heater): | 12 V |
| Heating output: | 80 W (2 x 40 W) |
| Heat-up time: | approx. 3 s 50°C - 350°C (120°F - 660°F) |
| Temperature range: | 100°C - 450°C (212°F - 850°F) |
| Tip type : | RTW series |
| Connectable to: | Weller WX Stations |
Part number: T0053422699
