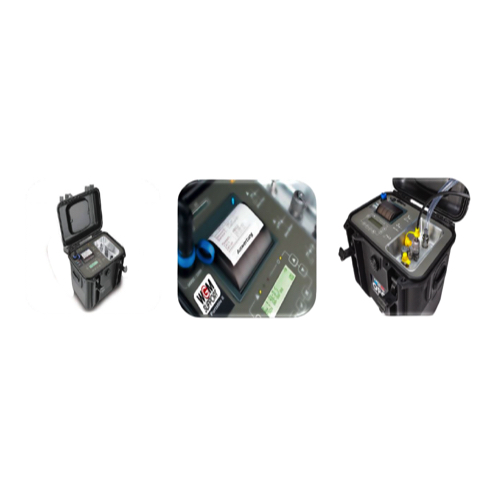

WGM PZMG 100 Portable Oil Lab (1-7; 100 – 800000 pS/m)

Operating pressure:

High-pressure connection¹: 5 – 320 bar

With pump operation: 0 bar

Viscosity range fluid: 5 – 1000 mm²/s

Operating temperature range fluid²: 0 – +60°C

Operating conditions:

Temperature: -10 – +60°C

Relative humidity: 0 – 95% r.H. (non-condensing)

Power supply device:

Power supply: 24 VDC

Power consumption: max. 8A

Power supply for the according power adaptor

Power supply: 100 – 240 VAC (50/60 Hz)

Power consumption: max. 4A

Power at 24VDC-output: max. 221W

Measuring range oil parameter

Relative permittivity: 1 – 7

Relative humidity: 0 – 100%

Conductivity: 100 – 800000 pS/m

Temperature: -20 – +120°C

Measuring accuracy

Particle measurement (within the calibration range) - ISO4 / ISO6: ±1 ordinal number (OZ)

Particle measurement (within the calibration range) - ISO14 / ISO21: ±2 ordinal number (OZ)

Relative dielectric number³: ±0.015

Relative humidity (10 – 90%)⁴: ±3% r.H.

Relative humidity (<10%, >90%)⁴: ±5% r.H.

Conductivity (100 – 2000 pS/m): ±200 pS/m

Conductivity (2000 – 800000 pS/m): typ. <10%; Temperature: ±2K

Interfaces: USB-B, SD-card (SD or SD-HC in FAT/FAT16/FAT32-data format)

Size internal data memory: 1250 readings (with time stamp)

Weight: <10 kg

¹ Depending on the oil viscosity

² Viscosity of the fluid must be within the permissible range

³ Calibrated to n-Pentane at 25°C

⁴ Calibrated to air at room temperature
