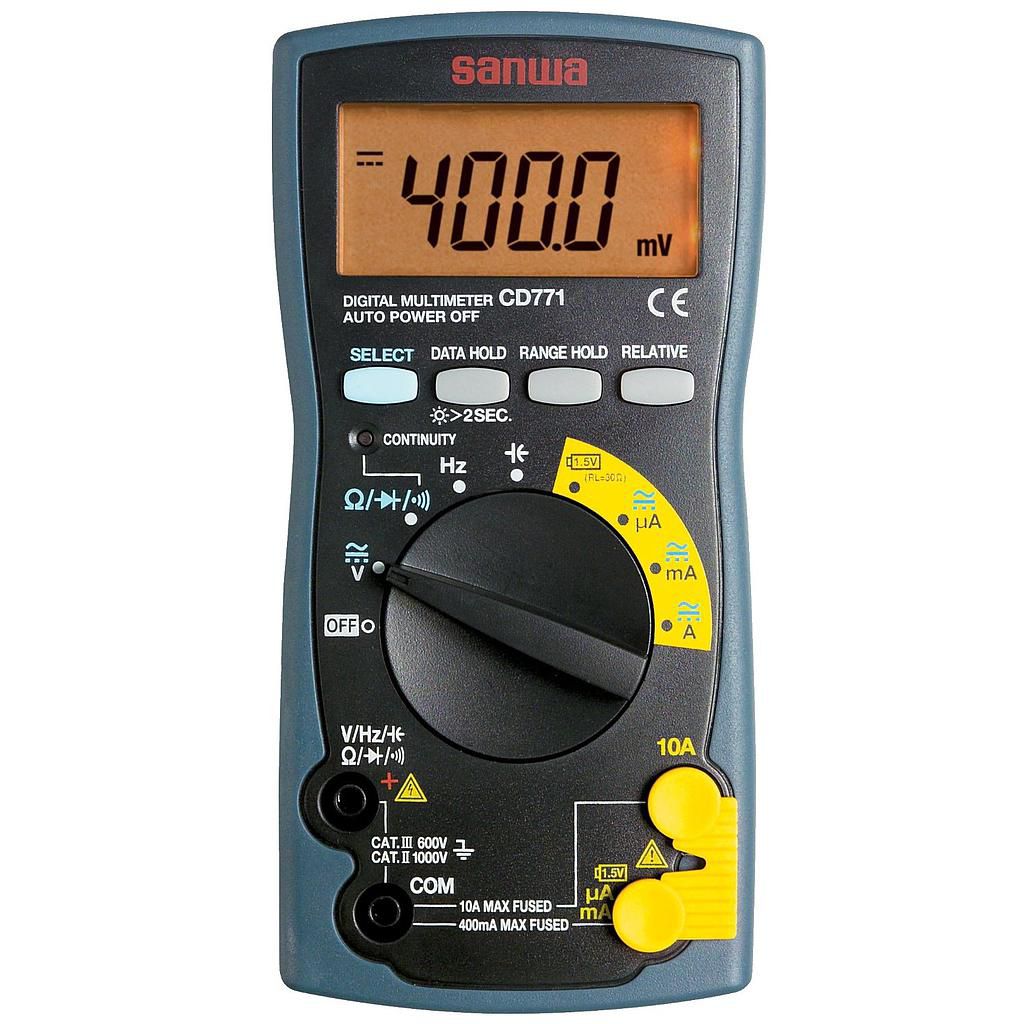

The Sanwa CD771 Digital Multimeter features a compact design with a protective outer rubber holster that helps shield the instrument from impacts and scratches. Compared with many other digital multimeters, the CD771 offers a wide measurement range of up to 1000 V and 10 A. It also includes Data Hold and Safety Test Leads for improved convenience and user safety.
Safety Features That Make the Sanwa CD771 Reliable
CAT III 600 V – More Than Just a Voltage Rating
The Sanwa CD771 complies with CAT III 600 V and CAT II 1000 V safety standards, making it suitable for use on industrial electrical systems, including distribution panels, switchboards, control cabinets, and other industrial applications.
It is important to understand that a CAT rating does not simply indicate the maximum voltage the meter can measure. Instead, it represents the meter's ability to withstand high-energy transient overvoltages generated during load switching, motor startup, or power system faults.
30 kA HRC Fuse – Small Component, Critical Protection
The Sanwa CD771 is equipped with a 30 kA High Rupturing Capacity (HRC) ceramic fuse.
If the user accidentally selects the wrong measurement function or an overcurrent condition occurs, the HRC fuse disconnects the circuit almost instantly, minimizing electric arc formation and preventing excessive fault current from reaching the internal measurement circuitry.
Safety Cap Helps Prevent Incorrect Probe Connections
In addition to its internal protection circuitry, the Sanwa CD771 features a Safety Cap at the current measurement input terminal.
This design makes it easier to identify the correct probe connection and helps prevent users from accidentally leaving the test lead in the current input when switching to voltage measurement—one of the most common causes of blown fuses and damaged digital multimeters.
Features of the Sanwa CD771
Rugged shock-resistant construction with a durable housing and anti-slip ribbed rubber holster
Wide measurement ranges: Voltage: 400 mV to 1000 V; Current: 400 μA to 10 A
High-contrast LCD with excellent readability
Fast digital display for quick and easy result interpretation
Auto Power Off after approximately 30 minutes of inactivity
DATA HOLD function freezes the displayed reading even if the input signal changes.
Note: Data Hold is not available during frequency (Hz) measurement.
Low battery warning. When the battery voltage drops below approximately 2.4 V, the low battery indicator appears on the display. Replace both batteries immediately.
See detailed specifications here
Frequently Asked Questions (FAQ)
Why does the display fluctuate even when nothing is being measured ?
The display may show several fluctuating digits even when the test probes are not connected to a circuit. This is normal behavior for most digital multimeters with high input impedance.
When the probes are left open, the meter can pick up ambient electromagnetic noise, causing slight fluctuations in the displayed value.
To verify proper operation, simply short the two probe tips together. If the display stabilizes near zero or fluctuates by only a few digits, the meter is functioning normally.
Why does the capacitance reading keep changing after connecting a capacitor ?
After switching to capacitance measurement, the displayed value may gradually increase or continue changing for several seconds.
This is normal because the multimeter measures capacitance by charging the capacitor with a small current and calculating its capacitance from the charging process. Large-value capacitors or capacitors with leakage require more time to stabilize.
For best accuracy, always discharge the capacitor completely before testing. Using the REL (Relative) function can also eliminate the residual capacitance of the test leads, especially when measuring small-value capacitors.
Can the Sanwa CD771 measure 220 V AC?
Yes. The multimeter measures AC voltage up to 1000 V, making it suitable for testing standard 220 V AC household power as well as many industrial electrical systems.
Does the Sanwa CD771 support Auto Range ?
Yes. The Sanwa CD771 supports both Auto Range and Manual Range, allowing users to choose the most appropriate measurement mode for each application.
Can the Sanwa CD771 measure capacitance ?
Yes. It measures capacitance from 50 nF to 100 μF, making it suitable for testing many commonly used capacitors in electrical and electronic equipment.
Can the Sanwa CD771 measure frequency ?
Yes. The meter measures frequency up to 100 kHz, making it suitable for testing a wide variety of basic electrical and electronic signals.
Does the Sanwa CD771 have Auto Power Off?
Yes. The meter automatically powers off after approximately 30 minutes of inactivity to conserve battery life.
The Auto Power Off function can also be disabled when continuous measurements are required.
Why does the protection fuse blow immediately during the next voltage measurement ?
After completing a current measurement, always move the red test lead back to the VΩ input terminal before measuring voltage.
Leaving the probe in the current input while measuring voltage is one of the most common causes of blown protection fuses.
Should the circuit be de-energized before measurement ?
Yes. Before measuring resistance, capacitance, or performing a continuity test, always ensure the circuit is completely de-energized.
What applications is the Sanwa CD771 suitable for ?
The Sanwa CD771 is ideal for residential electrical maintenance, electrical panel inspection, household appliance repair, HVAC maintenance, control systems, and low-power electrical circuits.
With DC accuracy of up to ±0.5%, it is one of the digital multimeter widely trusted by technicians for everyday troubleshooting, testing, and maintenance tasks.
