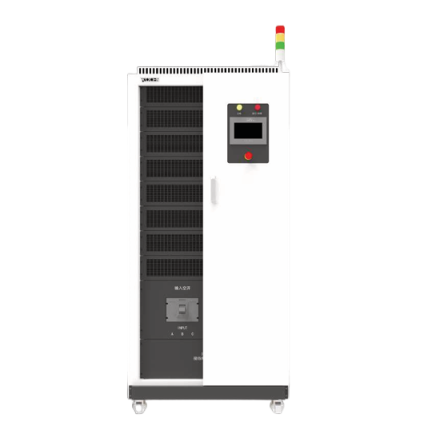

WOCEN WB3100-1200-300 High frequency bidirectional DC test power supply (100kW, 300A)
Manufacturer: WOCEN Model: WB3100-1200-300 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Rated Current: 300A
Output Voltage: 12V- 1200V
Power: 100kW
Size (WxHxD): 900*2000*1080
Output
Version: Standard version
Voltage accuracy: ±0.05%F.S.
Current accuracy: ±0.05%F.S.
Response time: 2ms
Switching time: 4ms
Voltage slope: 200V/ms
Current slope: 300A/ms
Voltage ripple: ≤0.1%·F.S.
Current ripple: ≤0.1%·F.S.
Input
Input mode: 3-phase 3-wire
Voltage: 380V±15%
Frequency: 47-63Hz
Current distortion: ≤3%
Power factor: ≥0.99
Safety feature
Insulation resistance: ≥20MΩ（500Vdc）
Voltage resistance: 3000VDC(60s，no flashover, breakdown)
Ground resistance: ≤100mΩ
Working environment
Ambient temperature: -10~40℃
Ambient humidity: 10%~90%(no condensation)
Altitude: ≤2000m
Communication interface: RS485,CAN, LAN
Protection grade: IP21(Indoor)
Cooling mode: Forced air cooling
