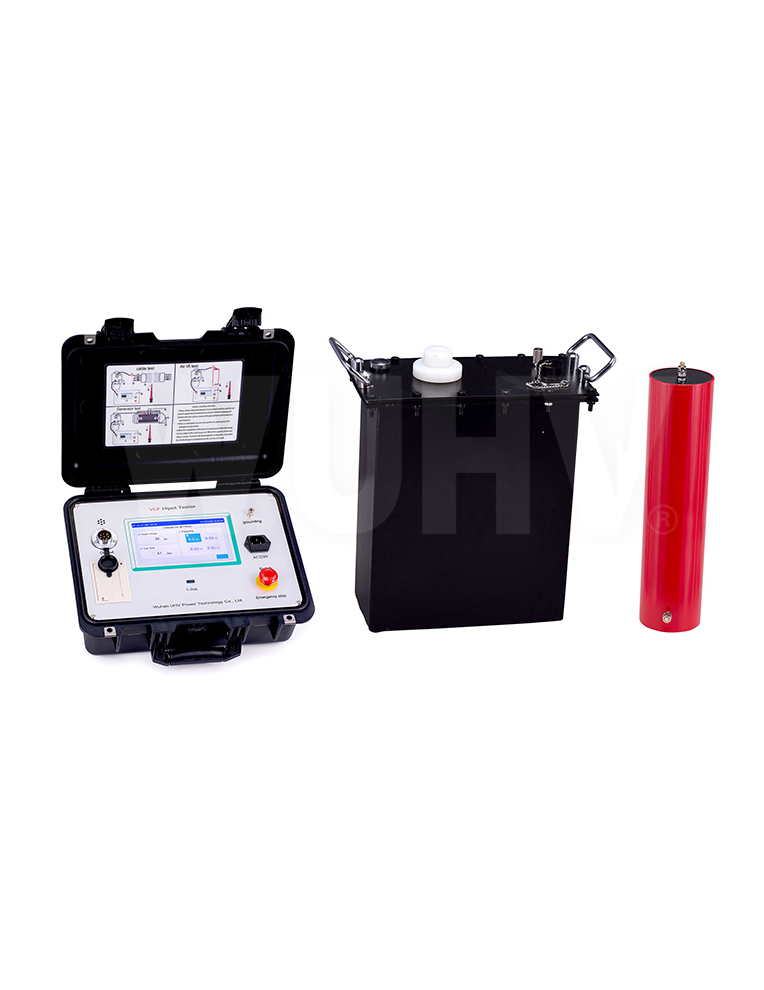

Wuhan VLF-60kV Hipot Test Set (60 kV)

Rated voltage: 60 kV (peak)

Carrying capacity:

0.1 Hz: ≤0.6 μF

0.05 Hz: ≤1.2 μF

0.02 Hz: ≤3 μF

0.01 Hz: ≤6 μF

Power supply fuse: 20 A

Generator power: >6 kW

Product structure and weight:

Controller: 4 kg

Booster: 45 kg

Power supply: AC 220 V ±5%, 50/60 Hz. If using a generator, it must be a digital inverter generator with a 220 V output and power >8 kW. Ordinary generators or UPS power supplies are prohibited.

Output voltage: 30 kV, 40 kV, 50 kV, 60 kV, 70 kV, 80 kV, 90 kV

Output frequency: 0.1 Hz, 0.05 Hz, 0.02 Hz, 0.01 Hz

Load capacity:

0.1 Hz: 0.5 μF

0.05 Hz: 1.0 μF

0.02 Hz: 2.5 μF

0.01 Hz: 5 μF

Measurement accuracy: 3%

Positive/negative voltage peak error: ≤3%

Voltage waveform distortion: ≤5%

Operating environment:

Temperature: -10 °C to +40 °C

Humidity: ≤85% RH
