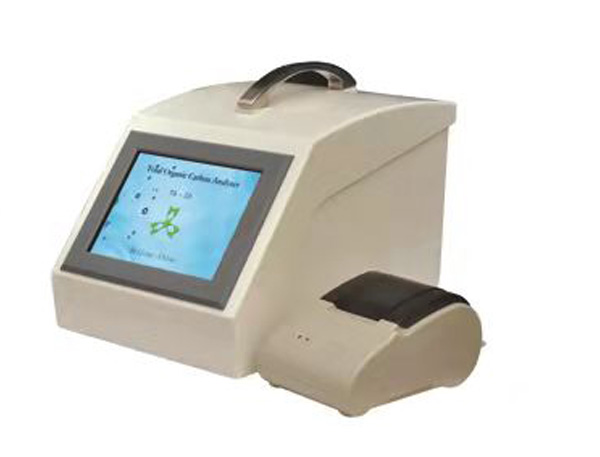

XHinstruments XHD-02B Total Organic Carbon Analyzer (0.001mg/L ~ 1mg/L)
Manufacturer: XHinstruments Model: XHD-02B - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Power Supply: 100-260VAC 50HZ,120W
Conductivity Detection Range: 0.055µs/cm-8.000µs/cm
Measure Range: 0.001mg/L ~ 1mg/L(1 ~ 1000ppb)
Accuracy: ±3%
RSD: Repeatability ≤ 3%
Resolution: 0.001mg/L
Response Time: 5mins
Measuring Limit: 0.001 mg/L
Analyzing Time: Continues Analyzing
Sample Temperature: 1-99℃
Applied Range: Online/Offline/ Cleaning Validation
Audit trail,Records: ≥ 3years storage
Authority Management: User name and password login ,to meet FDA 21CFR PART 11 requirements
Print Function: External Printer
Data Copy: USB disk to export the data
Display Screen: Color Touch Screen
Expansion Por: Ethernet Port 232 Serial Port Power Output Port 4-20MA signal output
Weight: 8.5KG
Dimension(mm): 400*240*270
Audit trail: customization
Product Description:
XHD-02B Total organic carbon analyzer (TOC) is developed on the basis of the original offline total organic carbon analysis instrument, which can meet both online and offline test modes for the users. And 3 points can be online measured switching one by one, so the application is more extensive, which can completely meet various on-site use requirements for the customers, thus greatly reducing the on-line monitoring implementation cost for the customers.
Product Features:
※ The instrument adopts no pump pipe design, and there is no need to configure the pressure reducing valve device for the online testing;
※ The instrument adopts the latest high-performance CPU processor, to expand the instrument function and improve the processing speed and accuracy
※ The ultra-large capacity of storage space can be used as the real-time query for raw data;
※ Due to no pump pipe design, there is no need of online accessory (pressure reducing valve), to reduce customers' material use, simplify the installation procedure and make flow rate more stable;
※ The independent research and development team can carry out the design of specific solutions according to the needs of customer
