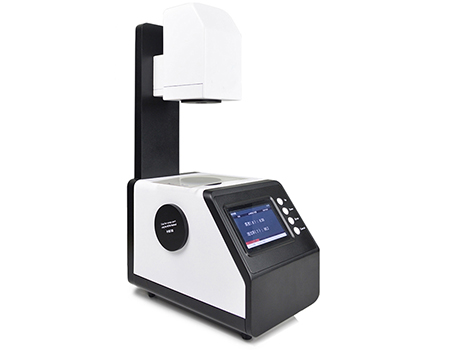

XHinstruments XHS-04A Haze Meter

Light Source: CIE-A,CIE-C,CIE-D65

Standards: ASTM D1003/D1044,ISO13468/ISO14782, JIS K 7361/ JIS K 7136, GB/T 2410-08

Parameters: HAZE, Transmittance(T)

Spectral Response: CIE Luminosity function Y/V (λ)

Geometry: 0/d

Measurement Area/ Aperture Size: 16.5mm/21mm

Measurement Range: 0-100%

Haze Resolution: 0.01

Haze Repeatability: <=0.1

Sample Size: Thickness <=145mm

Memory: 20000 value

Interface: USB

Power: DC24V

Working Temperature: 10-40 ℃ (+50 – 104 °F)

Storage Temperature: -20-50℃ (+32 – 122 °F)

Size (LxWxH): 310mm X 215mm X 540mm

Standard Accessory: Free PC software (Haze QC)

Details

Product Description:

Hazemeter : As a computerzied automatic measurement instrument, transmittance & haze instrument is designed according to ASTM D1003-2007. The instrument has a wide range of applications in the fields of national defense, scientific research and industrial production. It is used to perform the transmisstance or/and haze test on all transparent and translucent plane parallel injector, such as plastic plates, sheets, plastic films and sheet glass.

Test Standards:  ASTM D 1003,ISO 13468,ISO 14782, JIS K 7361 and JIS K 7136

Product Features

1. Three kinds of light sources A,C and D65 for haze and total transmittance measurement.

2. It can realize transmittance compensation measurement which can provide higher accuracy test result.

3. Open measurement area, no limit on sample size.

4. Instrument is with 5.0 inches TFT display screen with good human-computer interface.

5. It can realize both horizontal and vertical measurement to measure different kinds of materials

6. It adopts LED light source whose lifetime can reach 10 years.

7.No need to do warm-up, after instrument is calibrated, it can be used. And measurement time is only 3 seconds.

8. Small size and light weight which makes it much easier to carry.
