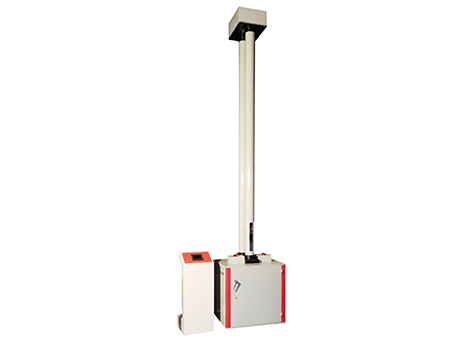

XHinstruments XHS-09 Falling Weight Impact Tester
Manufacturer: XHinstruments Model: XHS-09 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Structure: Adopts double pipe structure
Max. Falling height: 2000mm
Resolution of displacement: 1mm
Height error: <± 2mm
Hammer mass: 0.25-16kgs
Noses of the Strikers: d25 . d90
Diameter of Test Pipes: 10-400mm or 10-630mm
Power Supply: 220V, 50/60Hz Single Phrase
Outline Size: 830mm×800mm×3800mm
Machine Weight: 550kg
Product Description:
XHS-09 Falling Weight Impact Testing Machine is used for impact test of plastic pipe, sheet metal and products in order to determine Anti-impacts the properties of these materials.
This testing machine adapts PLC control and touch screen operation technology for control part, which can ensure that figure setup, adjusting zero, preset dropping height, raising hammer and dropping hammer automatically, adopting pneumatic technology in preventing secondary impacts, capture rate is 100%.
Test Standards: GB/T 14152, GB/T 10002.1, GB/T 5836.1, GB/T 13664, GB/T 16800, ISO 4422, ISO 3127, BS EN1411, BS EN744
