Test Range: Film:0.005-40g/（m2·24h）
Resolution: 0.001 g/(m2·day)
Standard Test Area: 50cm2
Specimen Thickness: ≤3mm
Test Chamber: 3 Test Chambers
Temperature Control Range: 10C-55C
Temperature Control Accuracy: ±0.2C
Test Humidity: 0-100%RH
Humidity Control Accuracy: ±1%
Carrier Gas: 99.999% High-purity Nitrogen (outside of supply scope)
Flow of Carrier Gas: 0-200 mL/min
Carrier Gas Pressure: ≥0.28MPa/40.6psi
Port Size: 1/8 inch metal tubing
Calibration Method: Standard Test Film
Dimension: 350mm (L)×695 mm (W)×410mm (H)
Power Supply: AC 220V 50/60Hz
Weight: 60Kg
Product Description:

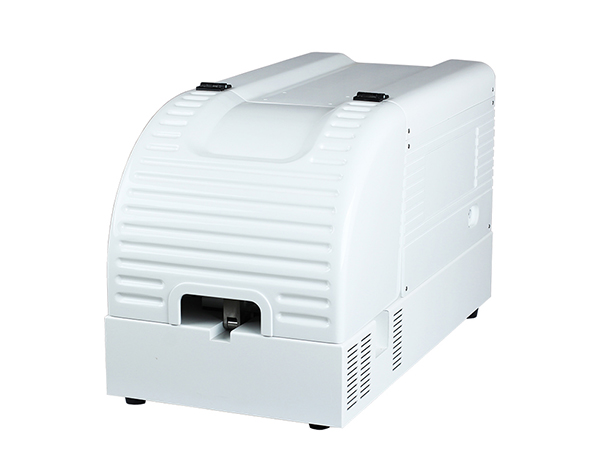

XHS-WVTR Water Vapor Transmission Rate Test System, is designed and manufactured based on infrared sensor method and conforms to the requirements of ISO 15106-2 and ASTM F1249. This instrument can be used to measure the water vapor transmission rate of barrier materials with high, and medium moisture barrier properties with a wide testing range and high testing efficiency. The instrument is featured with patented design of integrated block consisting of 3 test cells. Equipped with high precision sensors and professional computer-controlled system, the instrument can regulate and control the temperature, humidity and flow rate precisely, which guarantee the testing sensitivity and repeatability of test results. XHS-WVTR is applicable to determination of water vapor permeability of plastic films, sheeting, paper, packages and other relative packaging materials in food, pharmaceutical, medical apparatus, consumer goods, photovoltaic and electronic industries, etc.
Principle:
The test specimen is mounted in the diffusion cell, which is divided into a dry chamber and a controlled-humidity chamber. The dry side of the specimen is swept by a flow of dry nitrogen, and the water vapor permeating through the specimen from the controlled-humidity chamber is carried by dry nitrogen to the infrared sensor where proportional electrical signals will be generated. The water vapor transmission rate is obtained by analyzing and calculating the electrical signals. For whole package specimens, the dry nitrogen flows inside the specimen while the outside of specimen is maintained in a high humidity environment.
Test Standards: ISO 15106-2, ASTM F1249, GB/T 26253, JIS K7129, YBB 00092003-2015
Product Features:
Embedded high-speed microcomputer chip , simple and efficient human-computer interface, providing users with a comfortable and smooth operating experience
Automatic flow control: The test flow, including carrier gas and moisture, automatically controlled without manual intervention
Fully automatic temperature control, water bath cooling and heating temperature control technology, the equipment can change the temperature of the whole machine under the environment change of 5~40 degrees Celsius, and can be heated and cooled arbitrarily, with high control accuracy, stability and reliability, and the equipment is not disturbed by the external ambient temperature
Automatic humidity control: automatic humidity control, no mechanical knob, no manual intervention
Touch Screen Operation (Optional Purchase)
Professional test software support, real time display test data and graphs.
Imported high-speed and high-precision acquisition chips can effectively ensure test accuracy and real-time performance
One-key operation, simple and convenient.
Fully automatic test: set test parameters, the test will be carried out automatically after the start, automatically judge the end of the test and save the test results.
Infrared sensor with laser pulse modulation, long optical path absorption, higher measurement accuracy
Precision pipelines and valves, patented pipeline flushing technology, ensure the cleanliness of the carrier gas, and the test efficiency is higher
The installation technology of anti-side leakage sealing of the sample enhances the sealing of the sample.
High-efficiency test, low nitrogen consumption
Meet the requirements of GMP for data traceability, authority management and other functions, and the computerized system fully meets the needs of the pharmaceutical industry (optional Purchase)
