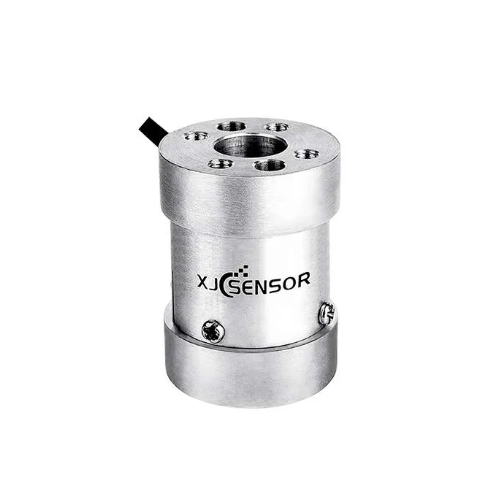

Capacity: 0-150N.m
Material: Aluminum alloy Alloy steel
Nonlinearity: 0.1%F.S.
Rated output: 1.5~2.0 mV/V
Recommended excitation: 5V-10VDC
Maximum excitation: 15VDC
Protect class: IP64
Compensated temp range: -10~40°C
Hysteresis: 0.1%F.S.
Operating temp range: -20~80°C
Repeatability: 0.1%F.S.
Insulation: ≥5000MQ/100VDC
Input impedance: 450±50Ω
Output impedance: 350±3Ω
Creep(30min): 0.1%F.S.
Temp effect on output: 0.05%F.S./10°C
Zero balance: ±2%F.S.
Temp effect on zero: 0.05%F.S./10°C
Limit load: 150%
Breaking load: 200%
Cable size: Ø3x4m
Life: Full scale more than 1 million times
Cable Connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White
