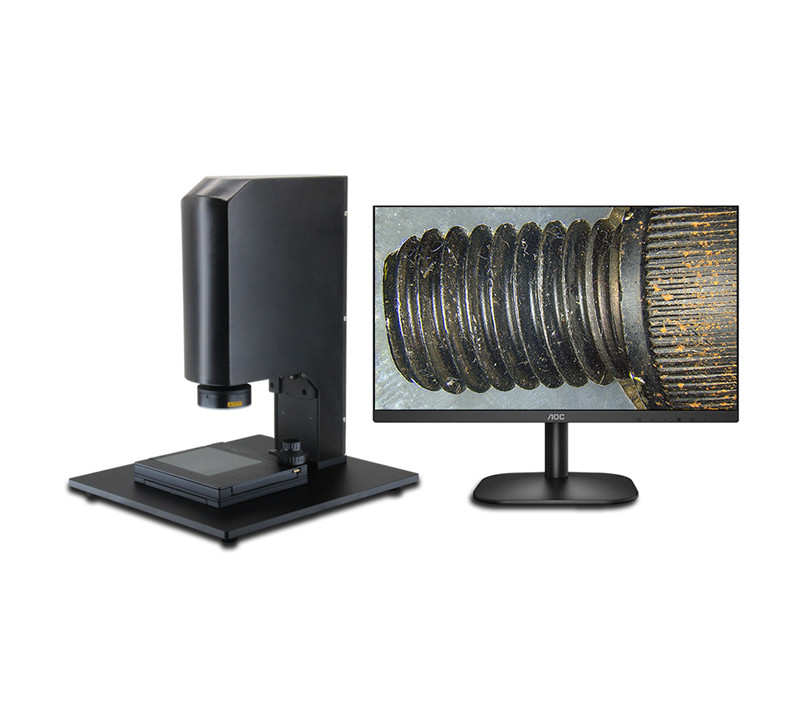

Xyc-tek DFF800 VIDEO MICROSCOPE ZOOM AUTO FOCUS DEPTH OF FIELD SYNTHESIS (1/1.8 inch, 0.6X – 5.0X, 19X – 136X)

Camera Sensor: 8M Pixel (IMX226, 1/1.8 inch)

Light Source: Top light & bottom light

Optical Magnification: 0.6X to 5.0X (8.3:1 zoom ratio)

Display Magnification (24-inch display): 19X to 136X

Z-axis Travel Range: 40 mm

Interface: HDMI, USB, DC

Power Supply: DC 24V 6A

Overall Dimensions: 330 × 350 × 425 mm

Measurement Functions: Point, line, circle, arc, parallel line, concentric circles, center distance

Other Functions: Real-time depth-of-field fusion, one-button autofocus, motorized zoom, calibration-free measurement, image saving

Real-time depth of field fusion, one-button autofocus, electric zoom, calibration-free measurement, parallel optical path design and other system integration, depth of field fusion can fuse images of different focus planes into a clear image, the ultra-high-speed electric zoom system has a repetition accuracy of up to one ten-thousandth, and the parallel optical path design is adopted to achieve low image distortion
