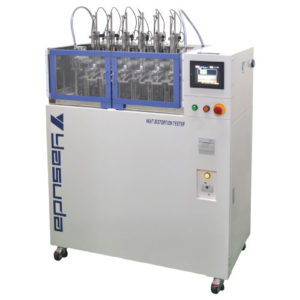

Yasuda 148-HD Heat Distortion Tester

Stations: 3, 4 or 6 Stations (3 kinds)

Temperature Range: Max. 300 °C (Oil Bath)

Heat-Up Speed: 120 ± 10 °C/hr, 50 ± 5 °C/hr

Bending Stress: 1.80 MPa and 0.45 MPa

Weight Load: DTUL: Choose 2 types from Initial 76.5 gf to Max. 3,210 gf; Option VICAT: 10 ± 0.2 N, 50 ± 1 N; Ball Pressure: 0.4 to 20 N

Displacement Measurement: Differential transformer: Scale 1/1,000 mm; Stroke 0 to ± 2 mm

Pressure Foot: DTUL: R 3.0 ± 0.2 mm; Option VICAT: 1.000 ± 0.015 mm2; Option Ball Pressure: φ5 mm

Support Length: 64 ± 1 mm, 100 ± 2 mm

Refrigerating Device: Water Circulating System; Option: Self Contained Refrigerator)

*When High Temperature cooling or Test Start Temperature 20 to 23 °C

Churning Device Propeller type; 3 and 4 Stations: 2 Propellers; 6 Stations: 3 Propellers

Software: Windows Compatible

Accessories: Pressure Foot Adjustment, Specimen Holder

Option: Silicon Oil, Safety Cover, Simultaneous Loading Device (Standard for No.148-HDA), Borosilicate Glass

Power Source: AC 200 V, 1-Phase, 30 to 40 A, 50/60 Hz

Dimensions/ Weight (Approx.): W800 to 1,100 × D720 × H1,500 mm/ 120 to 200 kg
