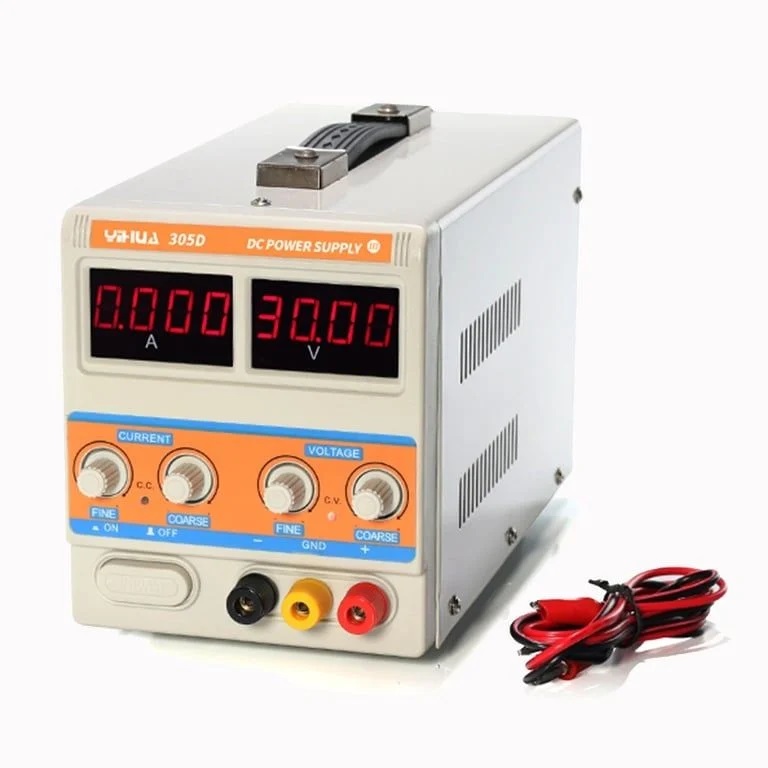

YIHUA 305D III DC Power Supply (30V 5A)
Manufacturer: YIHUA Model: Yihua 305D III P/N: yh305diii Origin: China Guarantee: 6 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Supply power: AC 220-240V, 50Hz/60Hz.
Working Temperature: -10°C ~ 40 °C
Relative Humidity: ‹ 90%
Storage Conditions: -10°C ~ 40 °C
Relative Humidity: ‹ 80%
Stable Voltage
The output voltage is between 0 and nominal value continuously adjustable
Voltage Stability: ≤0.01% +2mV
Load Stability: ≤ 0.01% +2mV
Recovery Time: ≤100µS
Ripple Noise: ≤1 MVRMS(RMS)
Temperature Coefficient: ≤ 200PPM/°C
Stable Current
The output current is between 0 and nominal value continuously adjustable
Power Stability: 0.1% + 3mA
Load Stability: 0.2% + 3mA
Ripple Noise : ≤2mArms(RMS)
Dimensions: 330 x 170 x 210 mm
Weight: 4.8 kg
