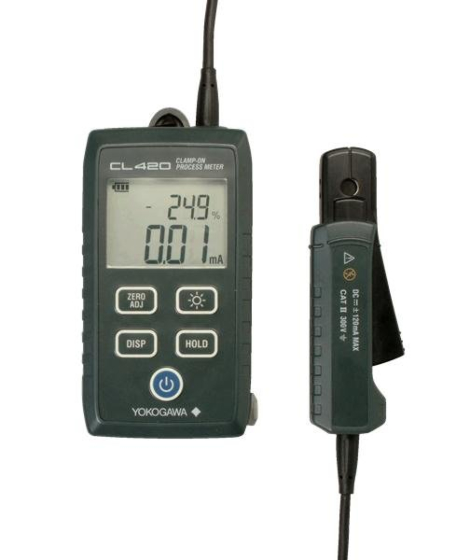

YOKOGAWA CL420 Clamp meter (DC 126mA)

Diameter of measurable conductor: 6mm diameter max.

DC Current: 20 mA: 0.00 to±21.49mA, 100 mA: ±21.0 to ±126.0mA; ±(1.0%rdg+5dgt) at 100 mA: ±21.0 to ±126.0mA

DC Voltage OUTPUT [10mV/mA]: 20 mA: 0.0 to±214.9mV, 100 mA: ±210 to±1260mV; (DCA Accuracy)+(±0.5mV) at V.214±to 0.0: mA 20

Display: 4-digit LCD Numeric display

Response time: Approx. 1.5 seconds (2.5 seconds when across the range)

Range switching: Auto range

Operating temperature and humidity: -10˚C to +50˚C 80% RH or less (no condensation)

Safety Standards: EN61010-1, EN61010-2-030, EN61010-2-032

Withstanding voltage: 2.21kV AC for 5 seconds (between the core and the case)

Power supply: Four AA-size alkaline batteries (1.5V LR6)

Battery life: Approx. 60hrs (continuous) backlight off and LED light off

Other functions: Data hold, Zero adjust function, Auto power off, LED Torch, light, Back light display, Illuminant panel

External dimensions: 61 (W) x 111 (H) x 40 (D) mm

Weight: Approx. 290g (including batteries)

Standard accessories: User’s Manual, Batteries, Soft case (93045)
