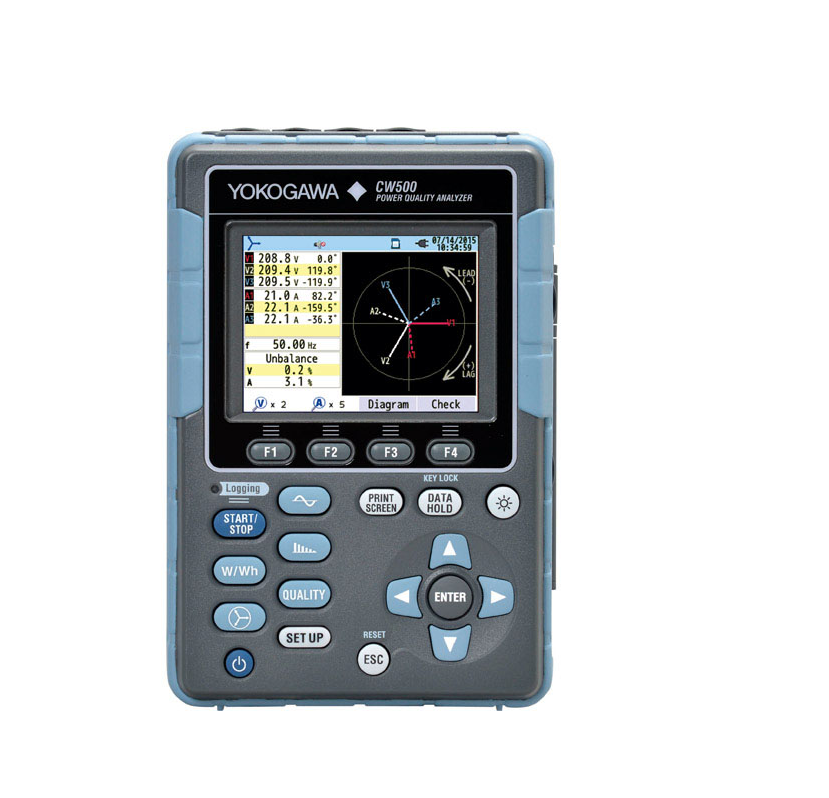

Yokogawa CW500-B0-F Power Quality Analyzer

Bluetooth function: No Bluetooth Function

Wiring connections: 1P2W (max. 4 systems), 1P3W (max. 2 systems), 3P3W (max. 2 systems), 3P3W3current, 3P4W

Measurements items: Voltage, Current, Frequency, Active power, Reactive power, Apparent power, Active energy, Reactive energy, Apparent energy, Power factor, Phase Advancing Condensor, Neutral current, Demand, Harmonics, Power Quality (Swell/Dip/Interrupt/Transient overvoltage, Inrush current, Unbalance rate. IEC flicker

Other function:Digital output, Analog DCV input function

Voltage(RMS): 600/1000 V; ±0.2% rdg ±0.2% rng. (sine wave, 40 to 70 Hz)

Current (RMS): 96060 (2 A type): 2000 mA,96061 (50 A type): 5000 mA/50 A/AUTO,96062 (100 A type): 10/100 A/AUTO,96063 (200 A type): 20/200 A/AUTO,96064 (500 A type): 50/500 A/AUTO,96065 (1000 A type): 100/1000 A/AUTO,96066 (3000 A type): 300/1000/3000 A; ±0.2% rdg ±0.2% rng. + accuracy of clamp-on probe (sine wave, 40 to 70 Hz)

Active power: + Accuracy ±0.3% rdg ±0.2% rng. + accuracy of clamp-on probe (Power factor 1, sine wave, 40 to 70 Hz)

+ Effect of Power Factor ±1.0% rdg (40 to 70 Hz, reading at power factor 0.5 against 1.0)

Frequency meter range: 40 to 70 Hz

Power supply (AC Line): AC100 to 240 V/50 to 60 Hz/7 VA max

Power supply (DC Battery): Alkaline size AA battery LR6 or Ni-Mh (HR15-51) × 6 pcs

Battery life: approx. 3 hours (LR6 Backlight OFF)

Internal memory: Flash memory (4 MB)

External memory card: SD Card (2 GB)

PC communication: USB Ver. 2.0

Display: 320 × 240 (RGB) Pixel, 3.5 inch color TFT

Display update period: 1 s

Display Language: English, French, Spanish, Polish, Korean, Chinese, Japanese

Temperature and humidity range: 23±5°C, less than 85% RH (without condensation)

Operating temperature and himidity range: 0 to 45°C, less than 85% RH (without condensation)

Storage temperature and humidity range: −20 to 60°C, less than 85% RH (without condensation)

Dimensions: 120 (W) × 175 (H) × 68 (D) mm

Weight: Approx. 900 g (with battery)

Included accessories (attached): 98078 Voltage Probe,93046 Carrying case,97060 SD Memory Card 2 GB,USB cable, Power cord,Quick manual, Alkaline size AA battery LR6 × 6pcs, Input terminal plate × 6 pcs, PC software (CD-ROM)

Optional accessories (sold separately) 96060, 96061, 96062, 96063, 96064 (Clamp-on Probe); 96065, 96066 (Clamp-on probe, flexible type); 98031 (Power supply adapter); 93047 (Portable case with magnet)
