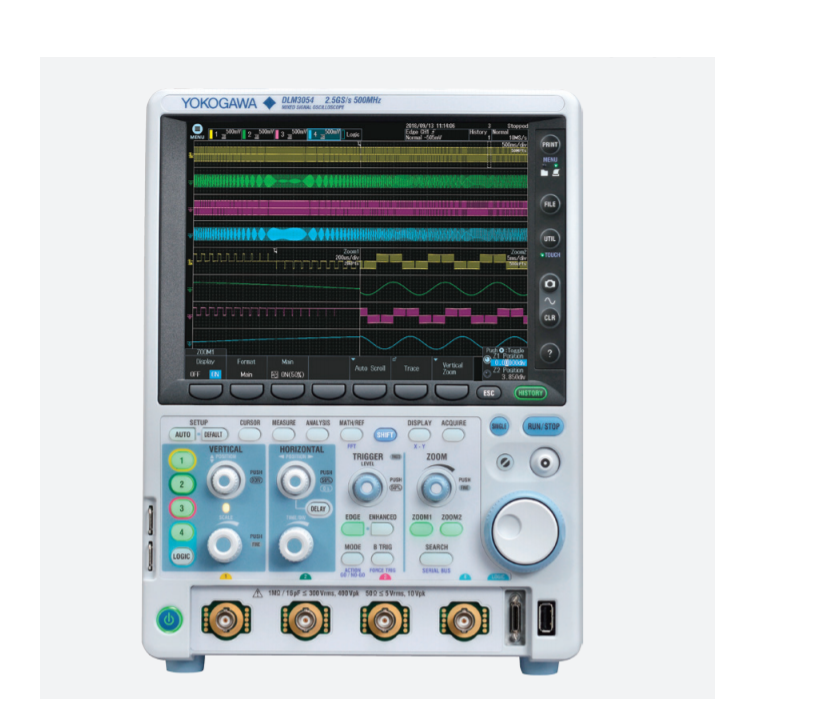

Maximum sample rate: 2.5GS/s
Frequency bandwidth: 200MHz
Maximum Record length: 125Mpts
Logic input: 8bit
Channels: 4ch
Display: 8.4-inch-inch TFT color liquid crystal display
Total pixels: 1024 × 768 (XGA)
Screen size: 170.5 mm (W) x 127.9 mm (H)
Input channels: DLM20x2: CH1, CH2; DLM20x4: CH1 to CH4- (CH1 to CH3 when using logic input)
Input coupling setting: AC, DC, DC50 Ω, GND
Input impedance: 1 MΩ±1.0%, approximately 20 pF | 50 Ω±1.5% |; (VSWR 1.4 or less, DC to 500MHz)
Voltage axis sensitivity setting range: 1 MΩ: 2 mV/div to 5 V/div (steps of 1-2-5); 50 Ω: 2 mV/div to 500 mV/div (steps of 1-2-5)
Max. input voltage: 1 MΩ: 150 Vrms CATl (when frequency is 1 kHz or less); 50 Ω: Must not exceed 5 Vrms or less, or 10 Vpeak
DC accuracy: (1.5% of 8 div + offset voltage accuracy)
Offset voltage accuracy: 2 mV to 50mV/div | ±(1% of setting +0.2 mV); 100 mV to 500 mV/div | ±(1% of setting + 2 mV); 1 V to 5 V/div | ±(1% of setting + 20 mV)
A/D Resolution: 8 bit (25LSB/div)
Bandwidth limit: FULL, 200 MHz, 100MHz, 20 MHz, 10 MHz, 5 MHz, 2 MHz, 1 MHz, 500 kHz, 250 kHz, 125 kHz, 62.5 kHz, 32 kHz, 16 kHz, 8 kHz (can be set for each channel)
Power supply: 100 to 240 VAC /50/60Hz
Power consumption: Max 170 VA
Operating Temperature: 5C° to 40C°
Dimensions: 226 (W) x 293 (H) x 193 (D) mm
Weight: Approx. 4.2kg
