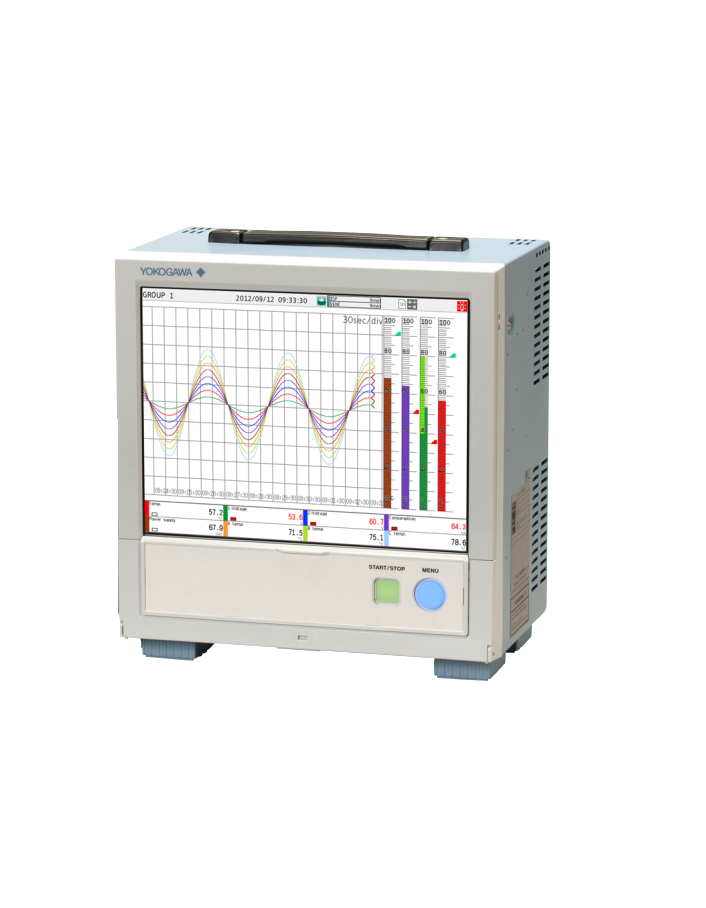

YOKOGAWA GP20-1E1Q/UH/US50 Paperless Recorder

Measuring Functions

The number of installable modules and I/O channels (total for GP, expandable I/O and GM sub unit)

Number of module: Max. 10

Number of input/output module: Max. 100

Scan interval:: 1, 2, 5, 10, 20, 50, 100, 200, 500 ms, 1, 2, 5 s Note) Some intervals will be unavailable depending on the system configuration and modules.

Display Functions

Display groups:

Number of groups: 50

Display color (Trend/Bar graph/Digital display):

Channel: Select from 24 colors

A desired display color can be selected freely using its RGB value.

Background: Select from white or black

Display type:

Trend display (T-Y)

Display method:

Direction: Horizontal, vertical Trend interval(Recording interval): 50 ms/div (1 ms), 100 ms/div (2 ms), 250 ms/div (5 ms), 500 ms/div (10 ms), 1 s/div (20 ms), 2.5 s/div (50 ms), 5 s/div (100 ms), 10 s/ div (200 ms), 15 s/div (500 ms), 30 s/div (1 s), 1 min/div (2 s), 2 min/div (4 s), 5 min/div (10 s), 10 min/div (20 s), 15 min/div (30 s), 20 min/div (40 s), 30 min/div (1 min), 1 h/ div (2 min), 2 h/div (4 min), 4 h/div (8 min), 10 h/div (20 min)

Data Saving Functions

Internal memory:

Temporarily saves various types of data.

Medium: Flash memory

File storage capacity;500 MB

External storage medium:

Medium SD card (SD/SDHC) (up to 32 GB)

Format: FAT32 or FAT16

Data type:

Display data, Event data, Alarm summary data, Manual sampled data, Screen image data, Setup data, and Report data

Display:

12.1-inch TFT color LCD (800 × 600 dots)

A small number of missing or steady-on LCD pixels and minor variations in brightness uniformity is a normal display characteristic and not a malfunction.

Touch screen: 4 wire resistive touch screen

Construction

Material:

Case: Metal plate

Bezel and display cover: Polycarbonate

External dimensions:

When installing modules: 288(W) × 318(H) × 248(D) mm

When uninstalling modules: 288(W) × 318(H) × 197(D) mm

(D: depth from the panel mounting plane)

Weight: Approx. 5.4 kg (excluding modules)

Power Supply:

Rated supply voltage: 100 to 240 VAC

Allowable power supply voltage range: 90 to 132, 180 to 264 VAC

Rated power supply frequency: 50/60 Hz
