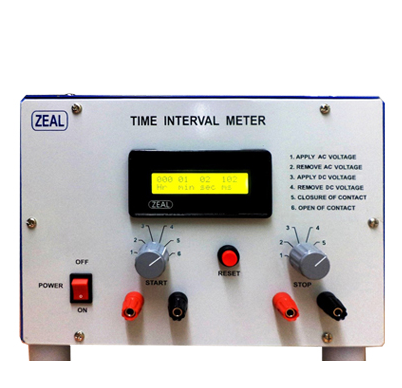

ZEAL ZMTIMmS Time Interval Meter (999 Hr, 59 Min, 59 Sec, 999 Milli Sec)
Manufacturer: ZEAL Model: ZMTIMmS Origin: India Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Input Power: 230 VAC, 50 Hz / 110 VAC, 60 Hz
Test Conditions:
For both Start & Stop Pulse by Decade Switches
Test 1) Apply DC Voltage (Up to 24 VDC Max)
Test 2) Remove Voltage
Test 3) Closure of Contact
Test 4) Open of Contact
Range: 999 Hr, 59 Min, 59 Sec, 999 Milli Sec
Reset Facility: By Push Button
Display: 16 X 2 Dot Matrix LCD Display
Resolution: 1 Milli second
Accuracy:
Up to 999 Milli Seconds: 0.05% ± 5 Digit.
Above 999 Milli Seconds: 0.01%
Protection: Start & Stop Pulse are isolated from each other
Weight: 5 kg
