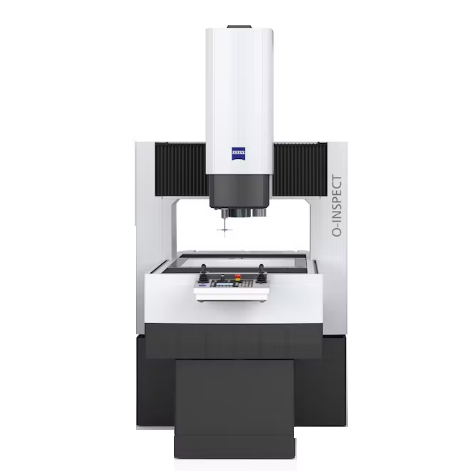

ZEISS O-INSPECT 5/4/3 Multi sensor CMM

Measuring volume: 500 x 400 x 300 mm3

Length measurement error MPE(E):

in 1D: 1.4 µm + L/250 µm

in 2D: 1.6 µm + L/250 µm

in 3D: 1.9 µm + L/250 µm

Software: ZEISS CALYPSO

2D optical camera sensor: ZEISS Discovery.V12

Option

standard 100: working distance 87 mm, 0.5 x - 6.3 x, sensor resolution 0.9 μm, FoV max.: 16,1 mm x 12,0 mm

scout 160: working distance 55 mm, 0.8 x - 10 x, sensor resolution 0.6 μm, FoV max.: 10,1 mm x 7,5 mm

scout 240: working distance 30 mm, 1.2x - 15 x, sensor resolution 0.4 μm, FoV max.: 6,7 mm x 5,0 mm

Tactile sensor: ZEISS VAST XXT

Option

VAST XXT TL 1:radial stylus length up to 40 mm (star stylus); stylus tip diameter of 0.1 to 8 mm

VAST XXT TL 3: radial stylus length up to 65 mm (star stylus); stylus tip diameter of 0.3 to 8 mm
