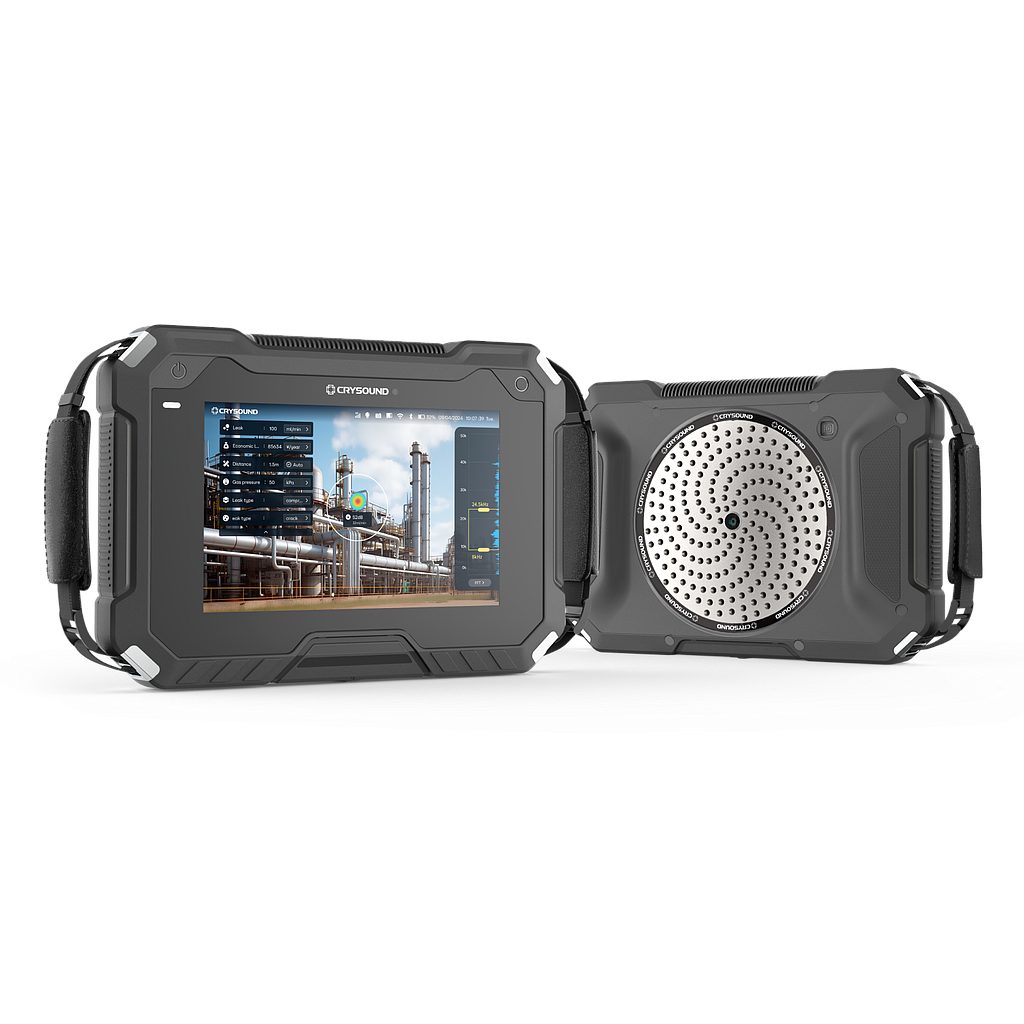

CRYSOUND CRY8124 高级声学成像相机 (2k - 100k Hz, 28 - 132 dB, 1x - 6x)

Acoustic Specifications

Microphone array: 200 channels MEMS microphone

Frequency range: 2k - 100k Hz

SPL range: 28 - 132 dB

Minimum detectable leak: 10 m 2.7 bar 0.0029 L/min, 0.5 m 1.9 bar 0.0028 L/min

Test distance: 0.5 - 200 m (1 - 656 ft)

Camera

Camera FOV: 66°

Focal length: 4.3 mm (0.17 inches)

Camea pixel: 13M pixel

Digital zoom: 1x - 6x

Fill light: LED * 4

Display: Resolution 1920 * 1200

Size: 8 inches

Touchscreen: Capacitive touchscreen

Brightness: 600 nits, support auto and manual adjustment

Storage

Storage: 64G internal，64G external TF card

Data format: .jpg (picture)，.mp4 (video)，.wav (audio)，.cdat（data）

Video length: 10 minutes

Data export: USB-C，Wi-Fi，TF card

Battery

Battery capacity: 6600mAh @7.2V

Battery type: Smart battery with indicator，replaceable

Battery life: Up to 5 hours

General Specifications

Size: 270 * 190 * 51 mm (10.6 * 7.5 * 2.0 inches)

Weight: 1.4 kg (3 lbs)

Wi-Fi: 802.11a/b/g/n/ac

Bluetooth: BT 5.2

GNSS: GPS+BDS+GLONASS+GALILEO+QZSS

Operating temp.: -20 - +50℃, 10 - 95%, no cond.

Storage temp.: -20 - +70 ℃, 10 - 95%, no cond.

IP rated: IP54

Storage size: 64G internal，64G external

Certificate

Safety: IEC 61010-1

EMC: IEC 61326-1

Vibration: 2g，IEC 60068-2-6

Shock: 25g，IEC 60068-2-27

Drop test: 1.2 m (4 ft)

Software

Function

Multi-point imaging，directional focus，distance measurement，leak volume estimation，PRPD spectrum，type recongnition，picture labeling，report export，and etc.

Hardware port

USB-C 1: USB 3.0 for charging，HDMI，data export

USB-C 2: USB 2.0 for data export，USB sensor

3.5 mm audio jack: Headphone output

TF card slot: External storage

SIM card slot: Inserting a 4G/5G network communication card

Analog input: 4 channels，20 - 100k Hz，IEPE，phantom power supply

Language

Language: Chinese, English, Korean, French, Japanese, Russian, German, Italian, EU Spanish, Portuguese, Hungarian, Dutch, Cambodian, Vietnamese, Turkish, Polish
